UHD Signage, 3840 x 2160 (UHD), 700nit, ADS, 120Hz
Key Features
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 700 nits (Typ.)
- The product carbon footprint of this product has been verified by the Carbon Trust
- Surface Treatment (Haze) : 25%
Description
Large UHD Signage Display with LG webOS Platform and Advanced SecurityHigh BrightnessThe UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores.
Sturdy Design with Fire Flame ResistanceThe outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Eye-catching Large ScreenA large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.
Versatile Operation with
Multi-USBWith support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS PlatformThe UH7N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides ReliabilityOptimized for business environments, the UH7N-M is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

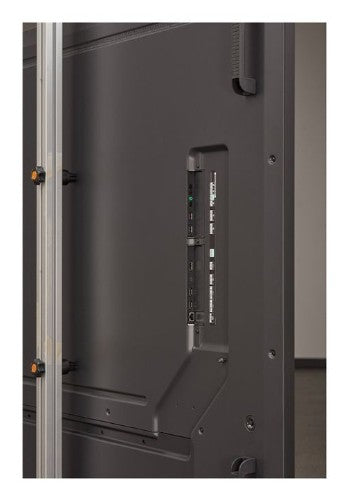

Design for Space UtilizationDesigned with thin bezels and simple cable management, the UH7N-M saves space.
Enhanced Security FeaturesThe UH7N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Carbon Footprint VerificationThe cradle-to-grave carbon footprint of UH7N-M has been verified by the Carbon Trust.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display diagonal |
75" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
700 cd/m² |
| HD type |
Full HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colors |
| Touchscreen |
No |
| Panel type |
ADS |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Edge-LED |
| Display technology |
LED |
| Colour gamut |
95% |
| Native refresh rate |
120 Hz |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| USB version |
2.0 |
| USB ports quantity |
3 |
| RS-232C |
Yes |
| DisplayPorts quantity |
1 |
| Consumer Electronics Control (CEC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.528" (1.34 cm) |
| Bezel width (side) |
0.528" (1.34 cm) |
| Bezel width (bottom) |
0.528" (1.34 cm) |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| Ambient light sensor |
Yes |
| Plug and Play |
Yes |
| HDCP version |
1.4/2.2 |
| Digital Rights Management (DRM) type |
Pro:Idiom |
| webRTC support |
Yes |
| Screen sharing |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
90 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (off) |
0.5 W |
| Power consumption (max) |
130 W |
| Heat generation (typical) |
546 BTU/h |
| Heat generation (max) |
843 BTU/h |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Operating system version |
6.0 |
| Weight & dimensions |
|---|
| Base width |
66.1" (167.9 cm) |
| Base depth |
1.17" (2.97 cm) |
| Base height |
37.8" (95.9 cm) |
| Base weight |
78.7 lbs (35.7 kg) |
| Packaging data |
|---|
| Package width |
71.7" (1820 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
43.9" (1115 mm) |
| Package weight |
97 lbs (44 kg) |
| Remote control included |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Remote management software |
Crestron |
| Wake-on-LAN |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Brand-specific features |
|---|
| LG technologies (AV/TV) |
Auto Set ID, Booting Logo Image, Control Manager, Fail over, Gapless Playback, Group Manager, ISM Method, Local Contents Scheduling, Local Network Sync, No Signal Image, RS232C Sync, SI Server Setting, Setting Data Cloning, Smart Energy Saving, Status Mailing, Video Tag |
| Sensors |
|---|
| Ambient light sensor |
Yes |
| Gyroscope |
Yes |
| Temperature sensor |
Yes |
| Features |
|---|
| Wall mountable |
Yes |
| Technical details |
|---|
| Panel type |
ADS |
| LED backlighting type |
Edge-LED |
| Built-in brightness sensor |
Yes |
| Ambient light sensor |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT |
| Compliance certificates |
Electromagnetic Compatibility (EMC) |
| Other features |
|---|
| Wi-Fi |
Yes |
| Power consumption (max) |
130 W |
| Panel type |
ADS |
| Display technology |
LED |
| Bundled software |
SuperSign CMS, SuperSign Control+,SuperSign WB,SuperSign Cloud,Mobile CMS,Connected Care |
| Built-in brightness sensor |
Yes |
| Bluetooth |
Yes |
| Bezel width (top) |
0.528" (1.34 cm) |
| Bezel width (side) |
0.528" (1.34 cm) |
| Bezel width (bottom) |
0.528" (1.34 cm) |
| Plug and Play |
Yes |
