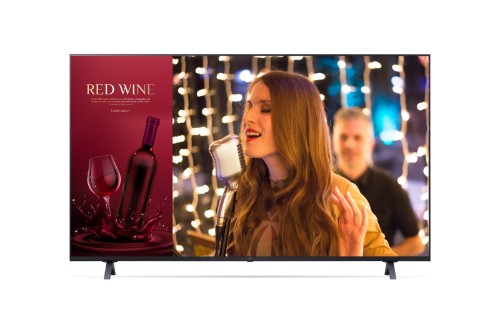

86", 4K Ultra HD (3840 x 2160), 400 nit, Bluetooth, Wi-Fi, Soft AP, BEACON, webOS 6.0
Key Features
- Brightness(Typ.) : 400 nits
- Resolution : ULTRA HD (3,840 x 2,160)
- Improved Design with Slim Depth
- webOS-based High Performance
- Easy Content Management / Group Management
- SuperSign Control / CMS Compatibility
Description
Superb Picture Quality with Ultra HD ResolutionWith the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
Improved Design with Slim DepthThis series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.
High-Performance with LG webOS 6.0LG webOS 6.0, upgraded in SoC* and web engine, is available on UR640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip
** GUI : Graphical User Interface
Embedded Content & Group ManagementThe embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.
Versatile Content Management with LG SuperSign CMSLG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.
Quick & Easy Signage Control with LG Supersign ControlSuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
Display Power Management SupportDisplay Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.
Real-Time PromotionWith Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content SharingContent Mirroring among devices is available on a same Wi-Fi network.
Compatible with AV Control SystemsThe UR640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
Easy Menu Setup for Vertical NeedsUR640S series increases users' convenience by organizing frequently used menus* by industry.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Easy Transportation with LG Universal StandThe LG TV signage can be used anywhere indoors where it can be easily wheeled around. From a retail store to public lounge, it plays various roles according to each need such as advertising, sports broadcasting, information delivery, and more.
Specifications
| Display |
|---|
| Display diagonal |
86" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
400 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Display technology |
LCD |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| USB version |
2.0 |
| USB ports quantity |
1 |
| Number of speaker outputs |
1 |
| RS-232C |
Yes |
| DisplayPorts quantity |
0 |
| RF input |
2 |
| Consumer Electronics Control (CEC) |
SimpLink |
| Audio |
|---|
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Blue |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Placement supported |
Indoor |
| Bezel width (top) |
0.272" (6.9 mm) |
| Bezel width (side) |
0.272" (6.9 mm) |
| Bezel width (bottom) |
0.724" (1.84 cm) |
| Performance |
|---|
| Purpose |
Universal |
| TV tuner integrated |
Yes |
| Analog signal format system |
PAL |
| Digital signal format system |
DVB-T2, DVB-C, DVB-S2 |
| Web browser |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
313 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
339 W |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Computer system |
Yes |
| Operating system version |
6.0 |
| Weight & dimensions |
|---|
| Width (with stand) |
75.9" (1927 mm) |
| Height (with stand) |
45.9" (1167 mm) |
| Depth (with stand) |
14.3" (362 mm) |
| Weight (with stand) |
99.6 lbs (45.2 kg) |
| Display width |
75.9" (1927 mm) |
| Display depth |
2.36" (59.9 mm) |
| Display height |
43.5" (1104 mm) |
| Display weight |
101.2 lbs (45.9 kg) |
| Packaging data |
|---|
| Package width |
83.3" (2115 mm) |
| Package depth |
8.98" (228 mm) |
| Package height |
47.8" (1215 mm) |
| Package weight |
128.7 lbs (58.4 kg) |
| Remote control included |
Yes |
| Cables included |
Power |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
Power |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Technical details |
|---|
| Teletext function |
Yes |
| Digital audio out |
1 |
| Weight (with stand) |
99.6 lbs (45.2 kg) |
| Other features |
|---|
| Wi-Fi |
Yes |
| Width (with stand) |
75.9" (1927 mm) |
| Teletext function |
Yes |
| Power consumption (max) |
339 W |
| Height (with stand) |
45.9" (1167 mm) |
| Headphone outputs |
1 |
| Display technology |
LCD |
| Depth (with stand) |
14.3" (362 mm) |
| Common interface Plus (CI+) |
Yes |
| Common interface (CI) |
Yes |
| Bluetooth |
Yes |
| Bezel width (top) |
0.272" (6.9 mm) |
| Bezel width (side) |
0.272" (6.9 mm) |
| Bezel width (bottom) |
0.724" (1.84 cm) |
| Weight (with stand) |
99.6 lbs (45.2 kg) |
