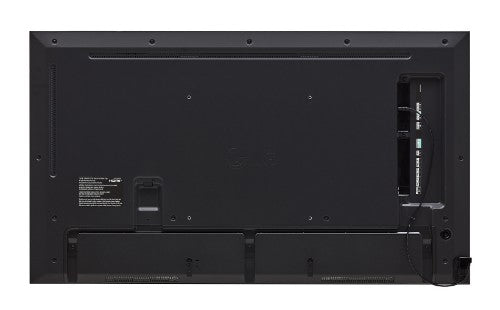

55", 4K UHD (3840 x 2160), IPS, 500 nit, 8 ms, IP5X, SoC, Wi-Fi, PIP, PBP, Pro:Idiom, Beacon, Control Manager, SuperSign CMS, webOS 6.0
Key Features
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 8.9 mm (T/R/L), 12.9 mm (B)
- webOS Smart Platform
Description
UHD Signage Display with
LG webOS Platform and Advanced Security
High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame ResistanceThe outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Convenient webOS PlatformThe UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space UtilizationDesigned with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides ReliabilityOptimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security FeaturesThe UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SustainabilityWith a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display diagonal |
55" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colors |
| Panel life |
50000 h |
| Touchscreen |
No |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Edge-LED |
| Display technology |
LCD |
| Colour gamut |
95% |
| Colour depth |
10 bit |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| USB connector type |
USB Type-A |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
Yes |
| USB version |
2.0 |
| USB ports quantity |
1 |
| RS-232C |
Yes |
| DisplayPorts quantity |
1 |
| HDMI input ports quantity |
3 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
300 x 300 mm |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.35" (8.9 mm) |
| Bezel width (side) |
0.35" (8.9 mm) |
| Bezel width (bottom) |
0.508" (1.29 cm) |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| Picture-in-Picture |
Yes |
| On Screen Display (OSD) |
Yes |
| HDCP |
Yes |
| Automatic brightness control |
Yes |
| Plug and Play |
Yes |
| HDCP version |
1.4/2.2/2.3 |
| Panel life |
50000 h |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
103 W |
| Power consumption (standby) |
0.5 W |
| Heat dissipation |
351 BTU/h |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Power consumption (max) |
160 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
103 kWh |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Internal memory |
16 GB |
| Operating system version |
6.0 |
| Weight & dimensions |
|---|
| Display width |
48.5" (1231.4 mm) |
| Display depth |
1.17" (29.7 mm) |
| Display height |
27.8" (707.2 mm) |
| Display weight |
35.5 lbs (16.1 kg) |
| Packaging data |
|---|
| Package width |
53.5" (1360 mm) |
| Package depth |
6.34" (161 mm) |
| Package height |
31.5" (801 mm) |
| Package weight |
45.2 lbs (20.5 kg) |
| Remote control included |
Yes |
| Cables included |
AC, Phone |
| Batteries included |
Yes |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, Phone |
| Batteries included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Features |
|---|
| Heat dissipation (max) |
546 BTU/h |
| Technical details |
|---|
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Panel type |
IPS |
| LED backlighting type |
Edge-LED |
| Real Time Clock (RTC) |
Yes |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Wi-Fi |
Yes |
| Power consumption (PowerSave) |
72 W |
| Power consumption (max) |
160 W |
| Panel type |
IPS |
| Display technology |
LCD |
| Bezel width (top) |
0.35" (8.9 mm) |
| Bezel width (side) |
0.35" (8.9 mm) |
| Bezel width (bottom) |
0.508" (1.29 cm) |
| Audio output |
1 |
| Plug and Play |
Yes |
