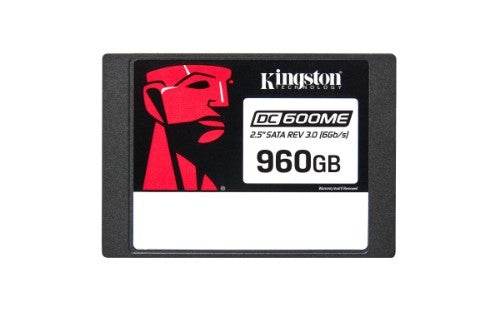

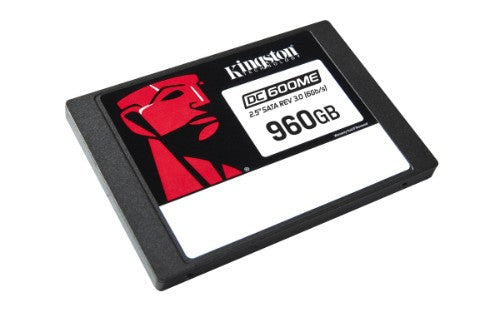

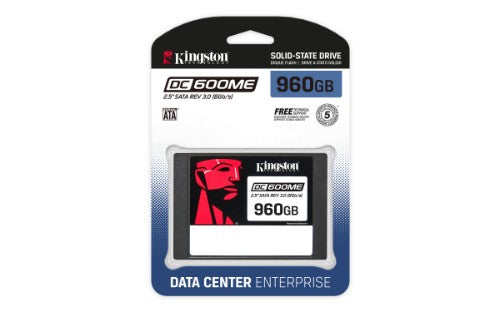

Kingston Technology 960G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD, 960 GB, 2.5", 560 MB/s, 6 Gbit/s
Key Features
- Designed for data center environments
- Hardware-based power loss protection
- Latency and IOPS consistency
- AES 256-bit encryption with DC600ME
- Capacities of up to 7.68TB*
Description
Kingston Technology 960G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD. SSD capacity: 960 GB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Specifications
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD capacity |
960 GB |
| Read speed |
560 MB/s |
| Write speed |
530 MB/s |
| Memory type |
3D TLC NAND |
| Data transfer rate |
6 Gbit/s |
| Random read (4KB) |
94000 IOPS |
| Random write (4KB) |
65000 IOPS |
| Read latency |
130 µs |
| Write latency |
70 µs |
| Security algorithms |
256-bit AES |
| S.M.A.R.T. support |
Yes |
| Hardware encryption |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| TBW rating |
1752 |
| SSD form factor |
2.5" |
| H/W PLP function |
Yes |
| Target workload |
Mixed Use (MU) |
| Hot-Plug support |
Yes |
| Use conditions |
Server/Enterprise |
| Power |
|---|
| Power consumption (average) |
1.45 W |
| Power consumption (write) |
3.6 W |
| Power consumption (read) |
1.6 W |
| Power consumption (idle) |
1.3 W |
| Performance |
|---|
| Interface |
Serial ATA III |
| Component for |
Server/workstation |
| SSD capacity |
960 GB |
| Read speed |
560 MB/s |
| Write speed |
530 MB/s |
| Memory type |
3D TLC NAND |
| Data transfer rate |
6 Gbit/s |
| Random read (4KB) |
94000 IOPS |
| Random write (4KB) |
65000 IOPS |
| Read latency |
130 µs |
| Write latency |
70 µs |
| Security algorithms |
256-bit AES |
| S.M.A.R.T. support |
Yes |
| Hardware encryption |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| TBW rating |
1752 |
| Design |
|---|
| Component for |
Server/workstation |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
2.75" (69.8 mm) |
| Depth |
3.94" (100.1 mm) |
| Height |
0.276" (7 mm) |
| Weight |
2.43 oz (69 g) |
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.36" (9.14 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
3.22 oz (91.2 g) |
| Package type |
Hanging box |
| Packaging data |
|---|
| Package width |
5.1" (129.5 mm) |
| Package depth |
0.36" (9.14 mm) |
| Package height |
7.25" (184.2 mm) |
| Package weight |
3.22 oz (91.2 g) |
| Package type |
Hanging box |
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
34.9 oz (990 g) |
| Products per master (outer) case |
10 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating vibration |
2.17 G |
| Non-operating vibration |
20 G |
| Technical details |
|---|
| Interface |
Serial ATA III |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating vibration |
2.17 G |
| Non-operating vibration |
20 G |
| SSD form factor |
2.5" |
| Logistics data |
|---|
| Master (outer) case width |
5.35" (135.9 mm) |
| Master (outer) case length |
8" (203.2 mm) |
| Master (outer) case height |
2.75" (69.8 mm) |
| Master (outer) case gross weight |
34.9 oz (990 g) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China, Taiwan |
| Other features |
|---|
| Country of origin |
China, Taiwan |
