3LCD, Poly-silicon TFT Active Matrix, 1049088 (1366 x 720) x 3, 5000 Lm, 16:9, 8 W x 2 RMS, 36 dB, 381 W, 9.7 Kg
Key Features
- Improved cable management — HDBaseT control pad supports, video, audio and interactive functions, reducing the number of cables and making installation a snap
- Built-in wireless — use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices
- Connect with Miracast® — supports software-free, peer-to-peer wireless connectivity
- SMART Learning Suite — includes 1-year subscription and support for SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
Description
Bring collaboration to classrooms and meeting spaces with this interactive HD 1080p laser display
Create engaging and collaborative learning environments with the BrightLink 1485Fi 1080p 3LCD interactive laser display. Providing 5,000 lumens of color and white brightness and a virtually maintenance-free 20,000-hour laser light source with no lamps, this reliable, ultra bright interactive display supports easy reading, instruction and communication. The flexible 1485Fi projects large, 100", 16:9 and super-wide, 120", 16:6 images, offering up to 95 percent more interactive space vs. a 75" flat panel. Designed for easy collaboration, the 1485Fi supports PC-free whiteboarding, printing, emailing and more. Plus, it easily hosts other network-connected BrightLink projectors, allowing up to eight users to work on a single interactive canvas from multiple locations. Now with automatic image adjustment, simplified calibration and a single-cable, HDBaseT control pad, installation has never been easier.
Specifications
| Projector |
|---|
| Projector brightness |
5000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Screen size compatibility |
65 - 100" |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
16:6, 4:3, 16:10, 16:9, 21:9 |
| Contrast ratio (typical) |
2500000:1 |
| Number of colours |
1.073 billion colors |
| Matrix type |
3-panel (p-Si TFT active) |
| Keystone correction, vertical |
-3 - 3° |
| Keystone correction, horizontal |
-3 - 3° |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Fixed focal length |
0.154" (3.9 mm) |
| Throw ratio |
16:9) 0.27 - 0.37, (4:3) 0.37 - 0.50, (16:10) 0.30 - 0.42 |
| Video |
|---|
| Full HD |
Yes |
| 3D |
No |
| Supported video modes |
1080p |

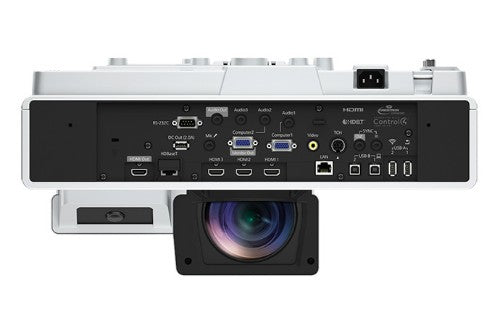

| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
4 |
| HDMI connector type |
Full-size |
| USB 2.0 ports quantity |
3 |
| Composite video in |
1 |
| Microphone in |
Yes |
| Serial interface type |
RS-232C |
| PC in (D-Sub) |
Yes |
| PC Audio out |
Yes |
| PC Audio in |
Yes |
| DVI port |
No |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Password protection |
Yes |
| Noise level |
36 dB |
| Noise level (economic mode) |
27 dB |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
16 W |
| Design |
|---|
| Market positioning |
Presentation |
| Product colour |
White |
| Product type |
Ultra short throw projector |
| Cable lock slot |
Yes |
| Placement |
Ceiling, Wall |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
381 W |
| Power consumption (standby) |
2 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (economy mode) |
270 W |
| Weight & dimensions |
|---|
| Width |
18.1" (459.7 mm) |
| Depth |
14.3" (363.2 mm) |
| Height |
8.3" (210.8 mm) |
| Weight |
21.4 lbs (9.7 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, USB |
| Batteries included |
Yes |
