Eaton BC600R uninterruptible power supply (UPS) Standby (Offline) 0.6 kVA 300 W 4 AC outlet(s)

0.6 kVA, 300W, 120V, 50/60Hz, 40 dB, ABS

Description

Dependable Battery Backup for PCs and Retail Point-of-Sale Applications

This standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It’s easy to set up in minutes. Just plug the UPS into a properly grounded wall outlet, connect equipment to the UPS outlets and press the power button.

Allows Time to Back Up Critical Files During a Blackout

During short blackouts and brownouts, the UPS switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable valve-regulated lead acid (VRLA) battery fully charged, so backup power is always available.

Filtering EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Its outlets also feature surge suppression to protect your connected devices from the harmful effects of voltage spikes and power surges.

Easy Preventative Maintenance and Initial Troubleshooting
The self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

Audible Alarm and Diagnostic LEDs Keep You Informed 24/7

An audible alarm alerts you to critical events like low battery or overload conditions. LEDs indicate power status, battery mode and fault alerts.

Compact Housing Compatible with Easy Desktop or Wall-Mount Installation

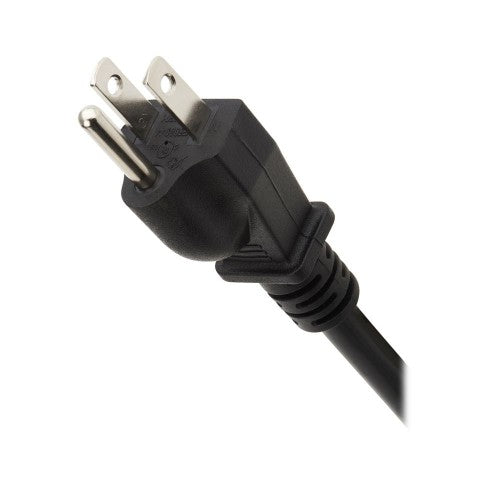

The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Specifications

Power
Output power capacity	0.6 kVA
Output power	300 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	190 J
Maximum current	5 A
Output power factor	0.5
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.8" (1.52 m)
AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Performance
UPS topology	Standby (Offline)
Number of input phases	1
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Noise level	40 dB
Audible alarm(s)	Yes
Features
UPS topology	Standby (Offline)
Output power capacity	0.6 kVA
Number of input phases	1
Output power	300 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	190 J
Maximum current	5 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Output power factor	0.5
Noise level	40 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	5 min
Typical backup time at full load	1.2 min
Cold start	Yes
Design
Form factor	Rackmount
Rack capacity	0U
Product colour	Black
Cable length	59.8" (1.52 m)
Housing material	Acrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	Federal Communications Commission (FCC), RoHS, CSA, Norma Oficial Mexicana (NOM), UL
Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS, CSA, Norma Oficial Mexicana (NOM), UL
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	10" (255 mm)
Depth	7.09" (180 mm)
Height	2.28" (57.9 mm)
Weight	4.41 lbs (2 kg)
