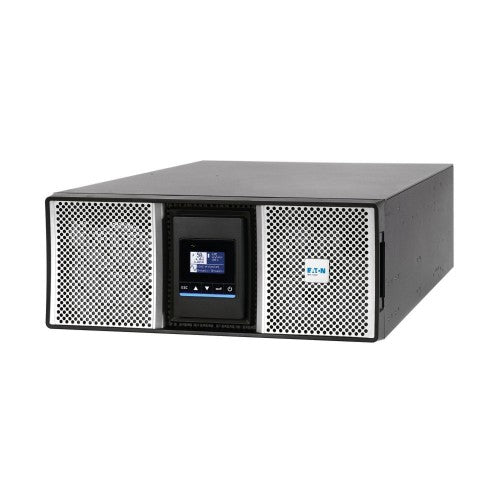

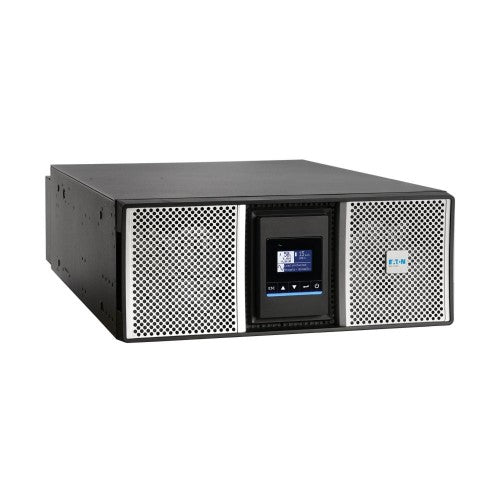

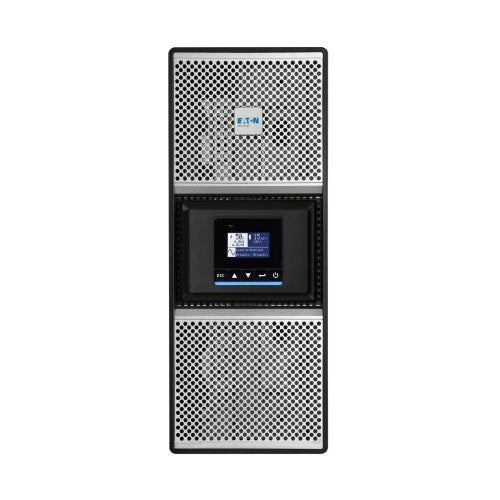

Eaton 9PX8KMG2 uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 4 AC outlet(s)

8 kVA, 8000W, 200-250V, 50/60Hz, 1137 BTU/h, 44 dB, VRLA

Description

Eaton 9PX G2 UPS

Featuring advanced technology upgrades and customer-centric feature enhancements, Eaton’s 9PX G2 online double-conversion UPS builds on the highly successful 9PX platform to create a best-in-class power management solution. Industry-leading hardware technology and Brightlayer software allow end users and service providers to deploy distributed edge applications with confidence, simplify fleet management and proactively monitor all critical equipment

More power in less space

Using wide-bandgap (WBG) technology, the 9PX G2 UPS maximizes usable output power and allows you to support more devices. Rack size is also reduced for several models. 11 kVA models offer full 11 kW output in only 4U!

Enhanced battery management

Lithium-ion (LiFePO4) batteries offer longer lifespan (8-10 years), longer runtime, faster recharge and lighter weight compared to VRLA. Eaton’s battery management system (BMS) monitors lithium-ion battery health and proactively alerts which UPS or EBM battery pack requires replacement soon. For VRLA models, Eaton’s new ABM+ technology offers predictive battery replacement analytics, allowing the UPS to proactively alert the user of battery health and remaining service life based on actual usage and conditions. ABM+ prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon.

Best-in-class efficiency

With up to 97% online efficiency, the 9PX G2 is the most efficient UPS in its class, reducing energy costs and TCO. All models are certified to the latest ENERGY STAR standards. Metered load segments help optimize energy use

Maximum power reliability

With true online double conversion, up to 10 lithium-ion or 12 VRLA extended battery modules (EBMs) for increased runtime, hot-swappable batteries, internal bypass and optional 0U maintenance bypass, the 9PX G2 UPS is perfect for preventing costly downtime of critical equipment.

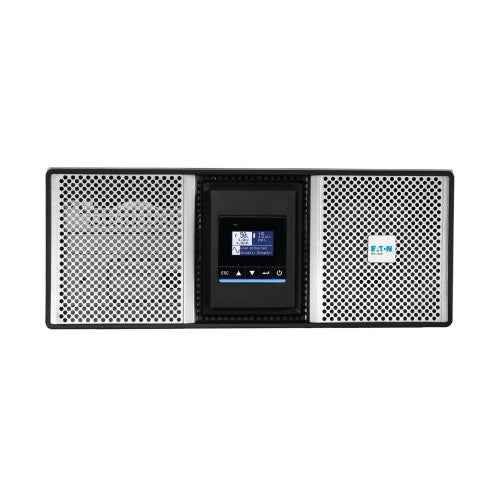

High-visibility control panel

A high-contrast LCD that tilts up to 45 degrees for optimal viewing makes local management easy. The LCD displays key data like load, efficiency, runtime and alarms. A large color LED status bar below the LCD helps you diagnose the UPS from a distance, even in dark and crowded data centers

Simplified fleet management

Monitor and manage your UPS fleet remotely to maintain uptime and improve operational efficiency. For smaller environments, you can connect using a web browser and receive email alerts. For larger deployments in multiple locations, the 9PX G2 UPS integrates smoothly via SNMP with digital solutions from our Brightlayer portfolio.

Certified cybersecurity

The included cybersecure network management card (NETWORK-M3) complies with UL and IEC cybersecurity standards and provides zero-trust architecture, zero-touch provisioning and a user-configurable firewall. Remote firmware upgrade capability keeps your UPS fleet updated with the latest features and security

Ready for virtualization, HCI and AI

Brightlayer software enables intelligent coordination with virtualized, hyperconverged and generative AI infrastructures, including complex orchestrations during blackouts and other power events to extend runtime and preserve data.

Specifications

Power
Output power capacity	8 kVA
Output power	8000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	250 V
Efficiency	96.5%
Output voltage Total Harmonic Distortion (THD)	1%
Output voltage regulation	±1%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.9
Input current Total Harmonic Distortion (THD)	5%
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Response time	0 ms
Surge protection	Yes
Waveform	Sine
Noise level	44 dB
LED indicators	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	8 kVA
Response time	0 ms
Output power	8000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	250 V
Efficiency	96.5%
Surge protection	Yes
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	1%
Output voltage regulation	±1%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.9
Input current Total Harmonic Distortion (THD)	5%
Noise level	44 dB
Input frequency	40 - 70 Hz
Heat dissipation	1137 BTU/h

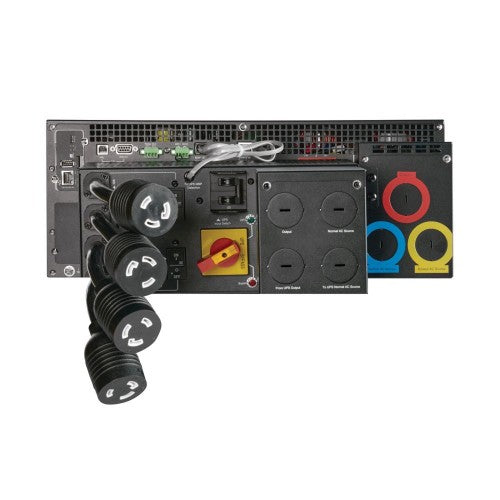

Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-30R
Power plug	Hardwire
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Network card slot	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	15.2 min
Typical backup time at full load	5.4 min
Hot-swap battery	Yes
Cold start	Yes
Design

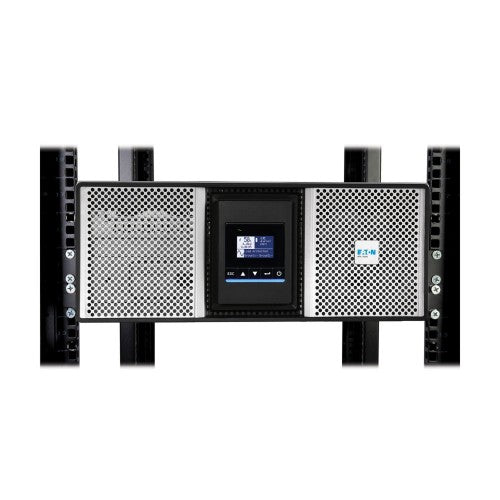

Form factor	Rackmount
Rack capacity	4U
Product colour	Black, Silver
LED indicators	Yes
Display type	LCD
Network card slot	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	CE, Federal Communications Commission (FCC), cULus, Norma Oficial Mexicana (NOM)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), cULus, Norma Oficial Mexicana (NOM)
Packaging content
Quick installation guide	Yes
Cables included	USB cable, RS-232
Rack mount kit	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	17.3" (439.4 mm)
Depth	28.6" (726.4 mm)
Height	6.8" (172.7 mm)
Weight	173.7 lbs (78.8 kg)
Packaging data
Quick installation guide	Yes
Cables included	USB cable, RS-232
Rack mount kit	Yes
