6 kVA, 5400W, 200-240V, 50/60Hz, 1699 BTU/h, 45 dB, Li-Ion
Description

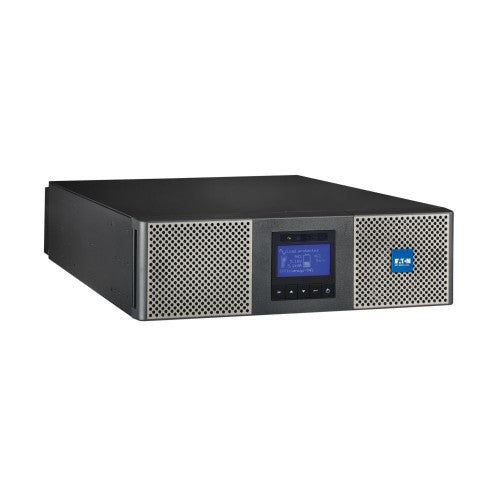

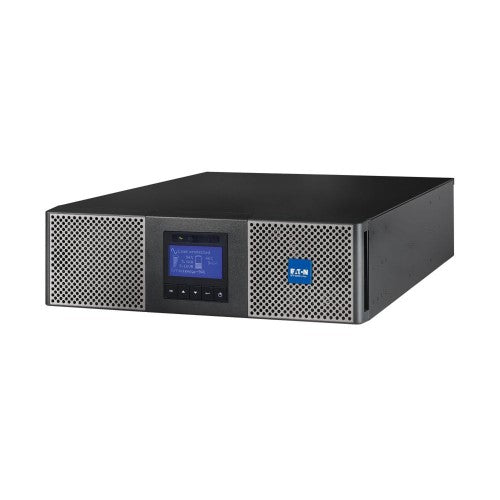

Eaton 9PX lithium-ion UPSDouble-conversion UPS that offers a set it and forget it deployment
The 9PX lithium-ion UPS is part of the Eaton 9 series single-phase double-conversion UPS line, best applied to mission-critical equipment for constant power conditioning. The 9PX lithium- ion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1–6 kVA, while also offering up to four external battery modules (EBM) for extra runtime. The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities. For connectivity, the 9PX is compatible with the Gigabit Network Card, which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards. This network interface card improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage.
Specifications
| Power |
|---|
| Output power capacity |
6 kVA |
| Output power |
5400 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
98% |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output voltage regulation |
±1% |
| Output power factor |
0.9 |
| Output frequency |
50/60 Hz |
| Input power factor |
0.99 |
| Input current Total Harmonic Distortion (THD) |
5% |
| Input frequency |
40 - 70 Hz |

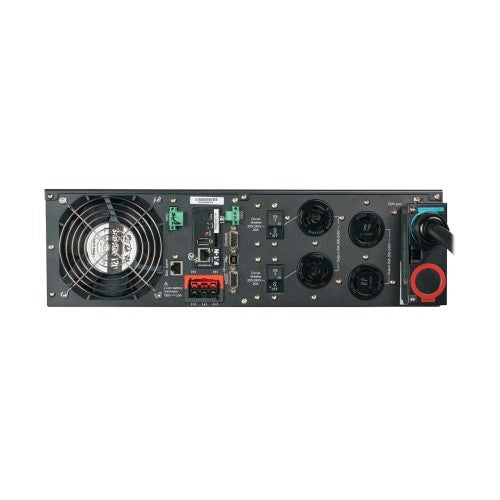

| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
NEMA L6-30R, NEMA L6-20R |
| Power plug |
NEMA L6-30P |
| USB port |
Yes |
| Serial interface type |
RS-232 |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| USB port type |
USB Type-B |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Noise level |
45 dB |
| LED indicators |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Output power |
5400 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
98% |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output voltage regulation |
±1% |
| Output power factor |
0.9 |
| Output frequency |
50/60 Hz |
| Input power factor |
0.99 |
| Input current Total Harmonic Distortion (THD) |
5% |
| Noise level |
45 dB |
| Input frequency |
40 - 70 Hz |
| Heat dissipation |
1699 BTU/h |
| Battery |
|---|
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
3U |
| Product colour |
Black, Silver |
| Cable length |
118.1" (3 m) |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
cULus, Norma Oficial Mexicana (NOM), CE, RoHS |
| Certificates |
|---|
| Compliance certificates |
cULus, Norma Oficial Mexicana (NOM), CE, RoHS |

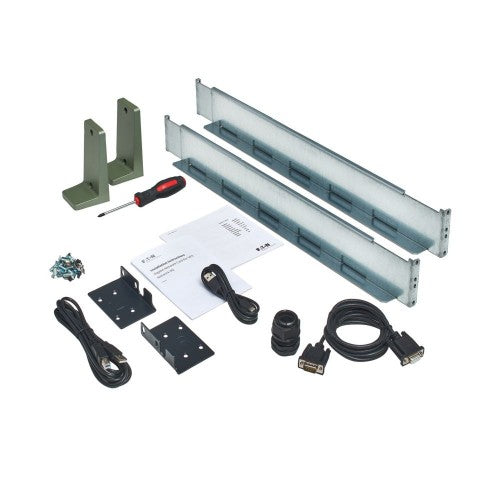

| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Management card included |
Yes |
| Weight & dimensions |
|---|
| Width |
17.3" (440.1 mm) |
| Depth |
28.4" (722.1 mm) |
| Height |
5.12" (130 mm) |
| Weight |
81.1 lbs (36.8 kg) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Management card included |
Yes |
