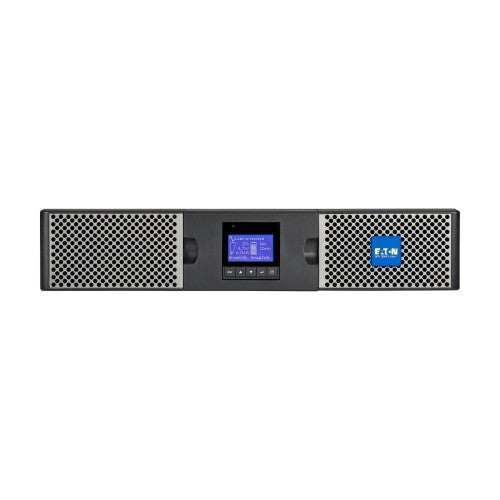

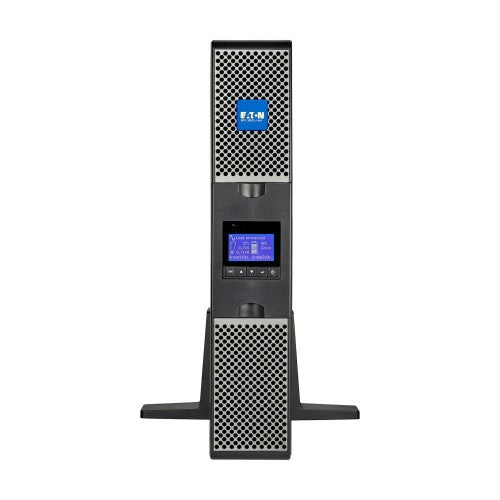

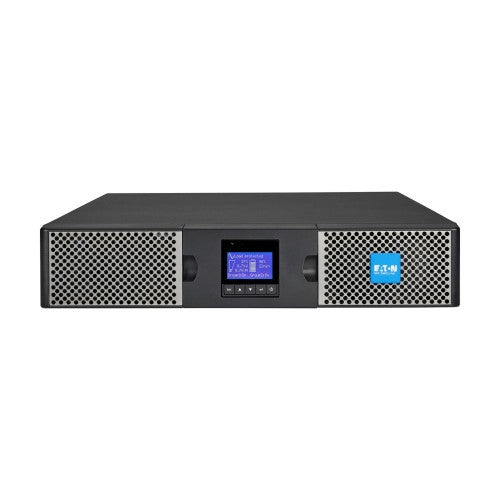

Eaton 9PX3000RTN-L uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)

3 kVA, 2700W, 100-125V, 50/60Hz, 1462 BTU/h, 47 dB, Li-Ion

Description

Eaton 9PX lithium-ion UPS

Double-conversion UPS that offers a set it and forget it deployment
The 9PX lithium-ion UPS is part of the Eaton 9 series single-phase double-conversion UPS line, best applied to mission-critical equipment for constant power conditioning. The 9PX lithiumion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1–6 kVA, while also offering up to four external battery modules (EBM) for extra runtime. The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities. For connectivity, the 9PX is compatible with the Gigabit Network Card, which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards. This network interface card improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage.

Specifications

Power
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	144 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	91.4%
Output voltage Total Harmonic Distortion (THD)	5%
Output voltage regulation	±1%
Output power factor	0.9
Output frequency	50/60 Hz
Input power factor	0.9
Input frequency	40/70 Hz

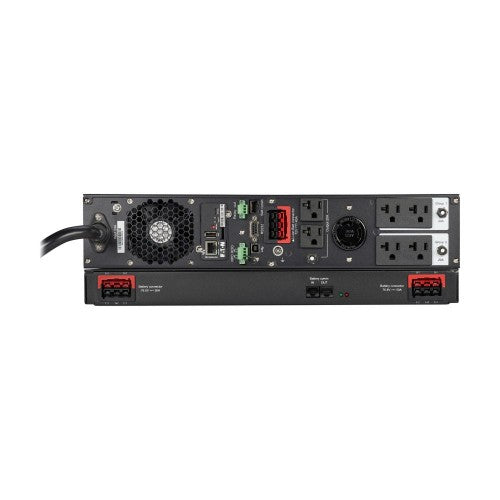

Ports & interfaces
Cable length	95.7" (2.43 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-20R, NEMA L5-30R
Power plug	NEMA L5-30P
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Network card slot	Yes
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	47 dB

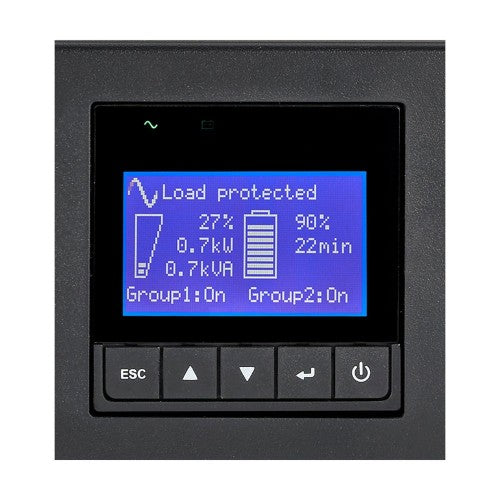

LED indicators	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	144 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	91.4%
Waveform	Sine
Output voltage Total Harmonic Distortion (THD)	5%
Output voltage regulation	±1%
Output power factor	0.9
Output frequency	50/60 Hz
Input power factor	0.9
Noise level	47 dB
Input frequency	40/70 Hz
Heat dissipation	1462 BTU/h
Battery
Battery technology	Lithium-Ion (Li-Ion)
Hot-swap battery	Yes
Cold start	Yes
Design

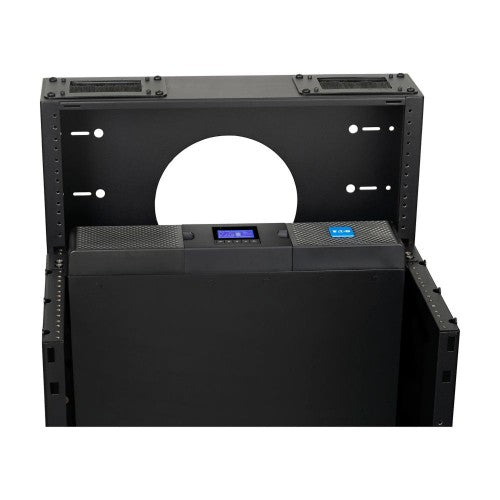

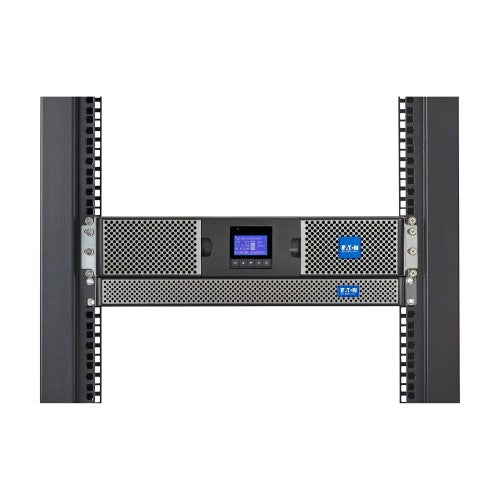

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Cable length	95.7" (2.43 m)
LED indicators	Yes
Network card slot	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-13 - 55 °C
Operating relative humidity (H-H)	0 - 96%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	Federal Communications Commission (FCC), cULus, Norma Oficial Mexicana (NOM)
Certificates
Compliance certificates	Federal Communications Commission (FCC), cULus, Norma Oficial Mexicana (NOM)
Packaging content
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Weight & dimensions
Width	17.3" (439.4 mm)
Depth	17.7" (449.5 mm)
Height	3.4" (86.3 mm)
Weight	35.5 lbs (16.1 kg)
Packaging data
Quick installation guide	Yes
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
