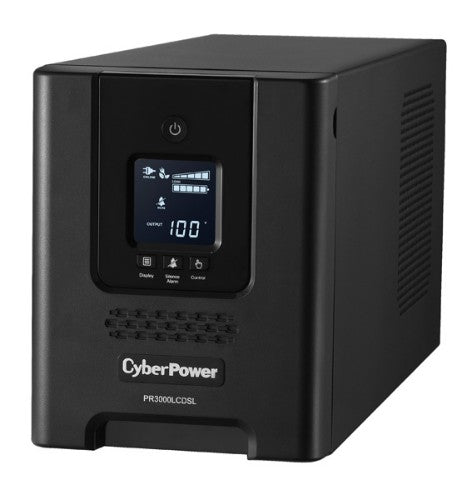

CyberPower PR3000LCDSL uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 7 AC outlet(s)

3000VA, 2700W, Line Interactive, NEMA L5-30P, NEMA L5-30R, NEMA 5-20R x 6, Mini-Tower

Description

The CyberPower Smart App Sinewave PR3000LCDSL mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

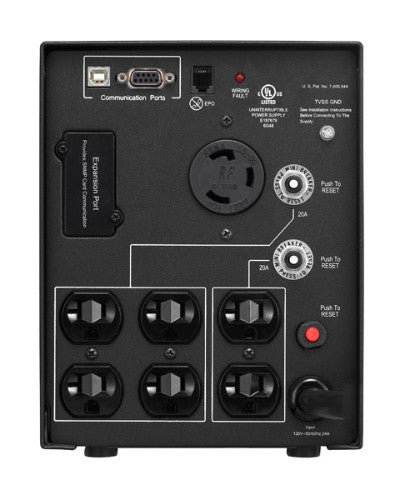

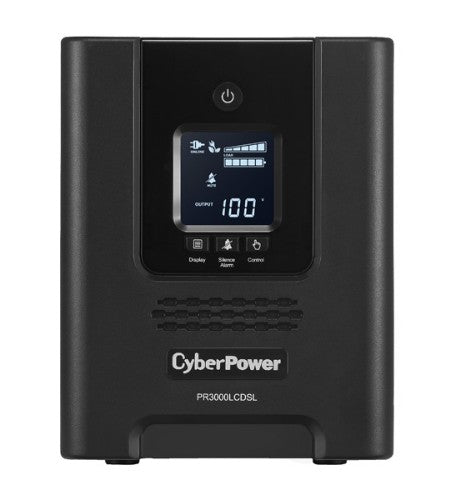

The PR3000LCDSL unit has a capacity of 3000VA/2700Watts, seven total outlets (6) NEMA 5-20R & (1) L5-30R receptacles, a NEMA L5-30P plug, and four (4) maintenance-free, user-replaceable 12V/9.0Ah batteries. The intelligent multifunction LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202 – RMCARD203) supports remote management and control of the PR3000LCDSL through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material and workmanship, further protection is offered by a $375,000 Connected Equipment Guarantee.

Specifications

Power
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output frequency	60 Hz
Input frequency	57/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-30R
USB 2.0 ports quantity	1
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Overload
Power factor	0.9
Output frequency	60 Hz
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	57/63 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	8 h
Typical backup time at half load	7.5 min
Typical backup time at full load	2 min
Hot-swap battery	Yes
Design
Form factor	Mini Tower
Product colour	Black
Safety	UL1778 4th, cUL CSA C22.2 No 107.3-05, FCC/DOC Class A
Cable length	118.1" (3 m)
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90%
Technical details
Output voltage	120 V
Output frequency	60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Width	6.7" (170.2 mm)
Depth	17" (431.8 mm)
Height	8.7" (221 mm)
Weight	55.8 lbs (25.3 kg)
Certificates
Safety	UL1778 4th, cUL CSA C22.2 No 107.3-05, FCC/DOC Class A
Other features
Output voltage	120 V
