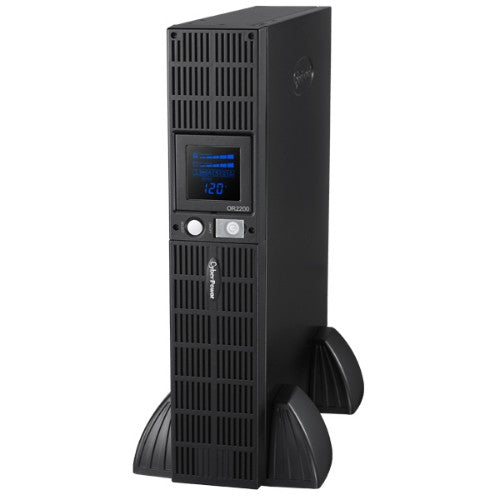

CyberPower OR2200LCDRT2U uninterruptible power supply (UPS) Line-Interactive 2 kVA 1320 W 8 AC outlet(s)

2000VA/1320W, 90-140V, 8x NEMA 5-20R, 5min, 4x 12V/9AH, 2x Serial, USB, RG6, 2U, 23.9kg, Black

Description

The CyberPower Smart App Intelligent LCD OR2200LCDRT2U uninterruptible power supply (UPS) is designed to protect office servers, corporate and departmental networks, and network-based appliances such as internetworking hardware, telecom equipment and high-end workstations. Its automatic voltage regulation (AVR) technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions.

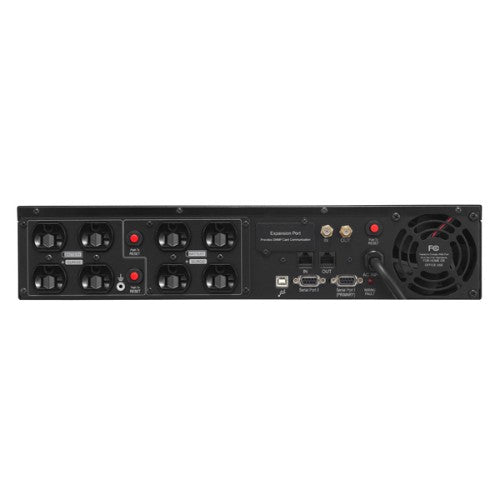

The OR2200LCDRT2U has a capacity of 2000VA/1320Watts, eight (8) battery and surge protected NEMA 5-20R receptacles and a NEMA 5-20P Plug. This UPS has four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The UPS offers options for connectivity via one (1) HID USB, two (2) DB9 serial and a SNMP card slot (optional RMCARD202 & RMCARD203). Protection for phone/network (RJ11/RJ45) and cable/coax (RG6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. Its design allows it to be either freestanding or rack-mounted (2U). The rotatable front LCD panel displays all major UPS vitals for ease of use.

The OR2200LCDRT2U UPS system is ENERGY STAR qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

This UPS unit incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.

Specifications

Power
Output power capacity	2 kVA
Output power	1320 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1840 J
Input frequency	50/60 Hz
Ports & interfaces
Cable length	236.2" (6 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
Power plug	NEMA 5-20P
USB 2.0 ports quantity	1
Serial ports quantity	2
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	1
Battery
Battery type	RB1290X4G
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	8 h
Typical backup time at half load	13 min
Typical backup time at full load	5 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Performance
UPS topology	Line-Interactive
Response time	10 ms
Surge protection	Yes
Surge protection features	Coax, Network, Telephone
Automatic Voltage Regulation (AVR)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2 kVA
Response time	10 ms
Output power	1320 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1840 J
Surge protection	Yes
Surge protection features	Coax, Network, Telephone
Automatic Voltage Regulation (AVR)	Yes
Input frequency	50/60 Hz
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Safety	UL1778, cUL, CSAC22.2, 107.1, FCC DOC Class B
Cable length	236.2" (6 m)
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Width	17.2" (438.1 mm)
Depth	15.7" (400 mm)
Height	3.5" (88.9 mm)
Weight	52.7 lbs (23.9 kg)
Certificates
Safety	UL1778, cUL, CSAC22.2, 107.1, FCC DOC Class B
Other features
Battery type	RB1290X4G
