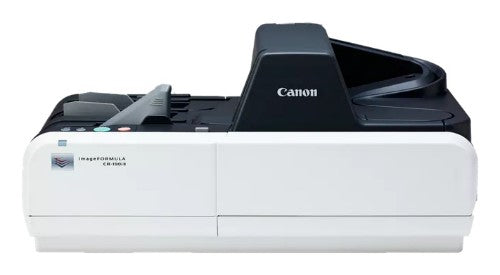

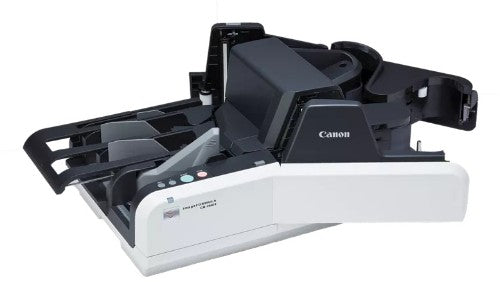

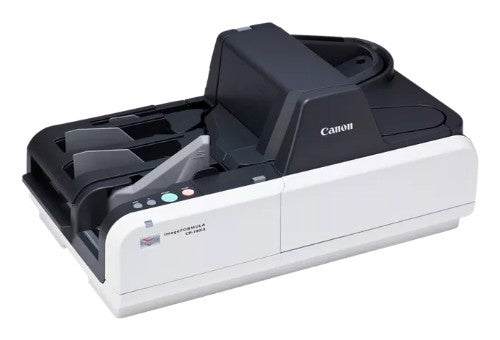

Canon imageFORMULA CR-190i II ADF scanner 1200 x 1200 DPI Black, White

1200 dpi, CMOS, 250 Sheets, 2.7" - 4.3" x 4.7" - 9.6", 18.5 lb.

Key Features

• Scans up to 190 checks per minute
• Magnetic Ink Character Recognition (MICR)
• Optical Character Recognition (OCR)
• Both physical and virtual endorsement, and imprinter, capabilities included
• TAA Compliant Device

Description

Deliver high performance, reliability, and image quality to production check processing with Canon’s imageFORMULA CR-190i II high-volume check transport. With a convenient countertop design and versatile document handling, the CR-190i II check transport can help meet even the toughest challenges.

WIDE RANGE OF USES
The CR-190i II check transport can assist in handling large volumes of checks to improve the efficiency of payment processes and treasury management in areas such as financial institutions, utilities, and other organizations. Many features of the CR-190i II check transport are ideal for high-volume remittance processing, lockbox, and back-office/branch capture. Bundled with the Silver Bullet Ranger API, this check transport can help ensure compatibility with virtually any check processing software application.

DYNAMIC AND RELIABLE PERFORMANCE
Capable of scanning up to 190 items per minute,* the CR-190i II check transport can perform real-time, dynamic, four-line endorsement. Equipped with a high-capacity, 250-item Automatic Document Feeder (ADF), it can reliably handle a wide variety of document types, including business and personal checks, thicker items such as rebate check cards, deposit and withdrawal slips, coupons, tickets, and envelopes. The CR-190i II check transport also includes two 200-item eject pockets that can be used individually or virtually combined to form one large pocket with output items “waterfalling” or alternating between each physical pocket for increased output capacity as required. These eject pockets are supplemented with an additional 50-item pocket for three-way sorting capability. The built-in jogger provides optimal item alignment to help eliminate misfeeds, and the ultrasonic double-feed detector helps to ensure no data is lost when double-feeds are detected.

PRECISE IMAGE QUALITY
The CR-190i II check transport builds on Canon’s high-precision optical technology expertise to deliver high image quality. Image processing features such as Fine Text Filtering allow for clear image capture with less distortion, resulting in better OCR accuracy. This scanner also uses magnetic/optical character recognition (MOCR) technology, which combines MICR reading with OCR processing, to help accurately capture MICR data. These features enable small details and other valuable check information to be captured and reproduced with clarity and precision.

EFFICIENT DESIGN
The CR-190i II check transport’s countertop size and easy-access design allows it to fit into environments that are vigorous with activity. Durable materials, enclosed mechanics, and an easyaccess paper path allow operators to conveniently perform basic maintenance tasks, such as changing the imprinter’s ink cartridge, clearing jams, and cleaning the scanning glass.

ENVIRONMENT IN MIND
The CR-190i II check transport is ENERGY STAR® certified and complies with both the EU RoHS and WEEE directives for the reduction of hazardous substances and waste products.

CUSTOMER CARE
For investment protection, eCarePAK options are available to extend service beyond the initial, one-year advanced exchange warranty period. This helps save on costs associated with post-purchasing maintenance and helps maximize uptime throughout the product life.

Specifications

Scanning
Maximum scan size	4.3 x 9.6" (109.2 x 243.8 mm)
Optical scanning resolution	1200 x 1200 DPI
Duplex scanning	Yes
Greyscale levels	256
Design
Built-in display	No
Product colour	Black, White
Scanner type	ADF scanner
Performance
Sensor type	CMOS CIS
Daily duty cycle (max)	24000 pages
Scan drivers	ISIS, TWAIN
Built-in OCR	Yes
MICR font set	CMC-7, E-13B
Built-in MICR	Yes
Input capacity
Standard input capacity	250 sheets
Paper handling
Maximum scan length	9.65" (24.5 cm)
Maximum scan area (ADF)	4.25 x 9.65" (108 x 245 mm)
Minimum scan area (ADF)	2.68 x 4.72" (68 x 120 mm)
Auto Document Feeder (ADF) media weight	64 - 157 g/m²
Media thickness (min)	0.00315" (0.0800 mm)
Maximum scan width	4.25" (10.8 cm)
Paper tray media weight	64 - 157 g/m²
Ports & interfaces
USB port	Yes
USB version	2.0
Power
Power supply type	AC
Power consumption (typical)	49 W
Power consumption (standby)	2.7 W
Input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	10.7" (272 mm)
Depth	18.7" (476 mm)
Height	8.43" (214 mm)
Weight	18.5 lbs (8.4 kg)
Packaging data
Quantity per pack	1 pc(s)
Technical details
Maximum scan width	4.25" (10.8 cm)
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Features
Country of origin	Japan
Sustainability
Sustainability certificates	ENERGY STAR
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Operational conditions
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80%
Other features
Compliance certificates	RoHS
Scanner type	ADF scanner
Country of origin	Japan
Quantity per pack	1 pc(s)
Logistics data
Country of origin	Japan
Quantity per pack	1 pc(s)
