Intel Core Ultra 9 288V (12MB Cache), 32GB LPDDR5x-SDRAM, 1000GB SSD, Intel Arc Graphics 140V, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Key Features
- Powerful Platform: Featuring the latest Intel® Core™ Ultra processor (Series 2) with multiple CPU, GPU, NPU architectures, offering 120 platform TOPS
- Transformative Graphic: Built-in Intel® Arc™ GPU, delivering up to 67 TOPS
- Enhanced AI Capabilities: Delivering up to 48 NPU TOPS, tripled the AI performance of the previous generation with lower power consumption
- Voice Command: Built-in microphone and speaker with smart AMP support voice command to activate AI Applications
- Ultrafast Connectivity: Intel® Wi-Fi 7 (5 Gig), Bluetooth 5.4, Thunderbolt™ 4 (DP2.1)
- Security and Reliability: Built-in Trusted Platform Module (TPM), Secure Boot with Fingerprint Recognition for Windows Hello Enhanced Sign-in Security, and Robust Design with reliable 24/7 sustained operation
- Compact Design: Boost productivity with space saving (< 0.6L), toolless design, industry-leading quality, fitting in
Description

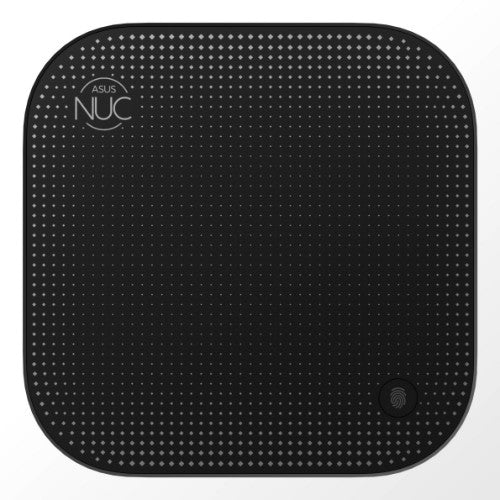

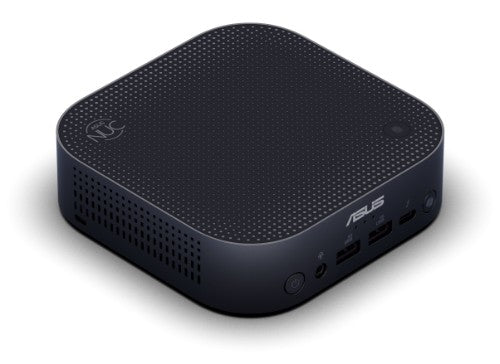

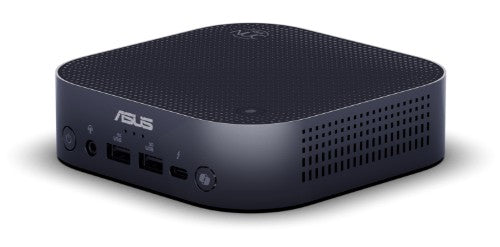

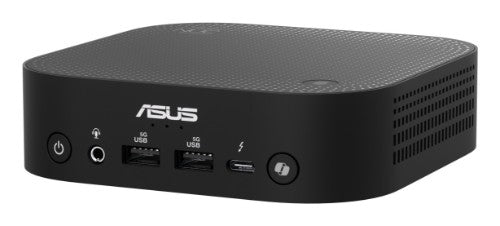

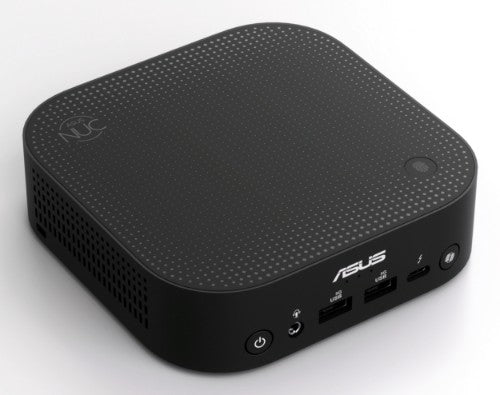

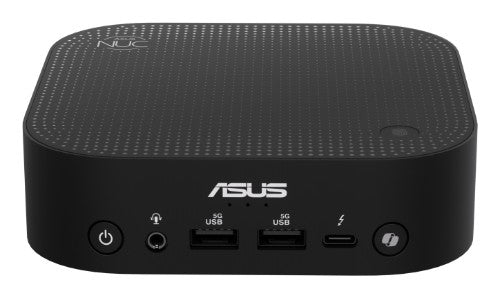

ASUS NUC 14 Pro AI (Lunar Canyon)
Create, achieve, and stay secure with AI InnovationThe World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.
Specifications
| Processor |
|---|
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 9 |
| Processor manufacturer |
Intel |
| Processor model |
288V |
| Processor cores |
8 |
| Processor cache type |
Smart Cache |
| Processor boost frequency |
5.1 GHz |
| Processor cache |
12 MB |
| Processor threads |
8 |
| Performance cores |
4 |
| Performance-core base frequency |
3.3 GHz |
| Processor base power |
30 W |
| Maximum turbo power |
37 W |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Low Power Efficient-cores |
4 |
| Low Power Efficient-core Max Turbo Frequency |
3.7 GHz |
| Low Power Efficient-core Base Frequency |
3300 MHz |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to |
120 TOPs |
| NPU performance up to |
48 TOPs |
| GPU performance up to |
67 TOPs |
| Copilot+ PC |
Yes |
| Memory |
|---|
| Internal memory |
32 GB |
| Internal memory type |
LPDDR5x-SDRAM |
| Memory clock speed |
8533 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Total SSDs capacity |
1 TB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel Arc Graphics 140V |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer |
Intel |
| LAN controller |
Intel I226-V |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Design |
|---|
| Product colour |
Black |
| Chassis type |
Mini PC |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Volume |
0.6 L |
| Colour name |
Black |
| Copilot key |
Yes |
| Performance |
|---|
| Product type |
Mini PC |
| Audio chip |
Realtek ALC3288 |
| Fingerprint reader |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Copilot+ PC |
Yes |
| Processor special features |
|---|
| Low Power Efficient-cores |
4 |
| Low Power Efficient-core Max Turbo Frequency |
3.7 GHz |
| Low Power Efficient-core Base Frequency |
3300 MHz |
| Power |
|---|
| Power supply |
120 W |
| Weight & dimensions |
|---|
| Volume |
0.6 L |
| Width |
5.12" (130 mm) |
| Depth |
5.12" (130 mm) |
| Height |
1.34" (34 mm) |
| Weight |
17.6 oz (500 g) |
| Packaging content |
|---|
| Display included |
No |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Processor manufacturer |
Intel |
| On-board graphics card |
Yes |
