Intel Core Ultra 7 Processor (Series 2) and Intel Arc Graphics, Unleashing Unmatched Performance
Key Features
- Powered by Intel® Core™ Ultra Processors (Series 2) with up to 99 TOPS and 18% faster gen-on-gen performance for seamless operations.
- Advanced thermal design ensures ultra-quiet cooling with 1.2x reduced noise for a refined experience.
- Intel® Wi-Fi 7 and Bluetooth® 5.4 deliver up to 2.4x faster speeds and reliable, seamless connectivity.
- Sleek 0.7L chassis with tool-free upgrades combines elegance with effortless customization.
- Supports up to four 4K displays via HDMI 2.1 and Thunderbolt™ 4, with smart power-off for energy efficiency.
- Built from sustainable materials, offering enduring quality with eco-conscious design.
Description

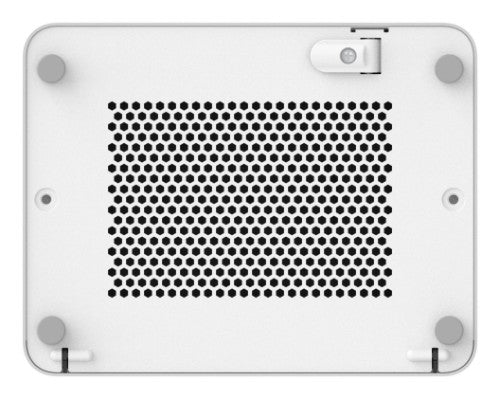

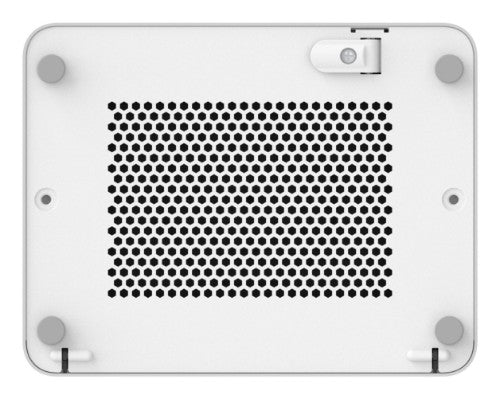

ASUS NUC 15 Pro+
Unleash Ultra Power, Embrace IntelligenceASUS NUC 15 Pro+ offers a perfect blend of cutting-edge performance and sophisticated design. Powered by the latest-generation Intel® Core™ Ultra 9 processor (Series 2) and Intel Arc™ graphics, NUC 15 Pro+ delivers unparalleled speed and stunning visuals, all in a sleek and compact metal chassis.
Specifications
| Processor |
|---|
| Built-in processor |
Yes |
| Processor family |
Intel Core Ultra 7 |
| Processor model |
255H |
| Processor threads |
16 |
| Processor cores |
16 |
| Processor boost frequency |
5.1 GHz |
| Processor manufacturer |
Intel |
| Processor cache |
24 MB |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Efficient-core Max Turbo Frequency |
4.4 GHz |
| Performance-core base frequency |
2 GHz |
| Efficient-core base frequency |
1.5 GHz |
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Processor generation |
Intel Core Ultra (Series 2) |
| Memory |
|---|
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600,6400 MHz |
| Maximum internal memory |
96 GB |
| Internal memory installed |
No |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
M.2 |
| Maximum storage capacity |
8 TB |
| Number of storage drives supported |
1 |
| Storage drives installed |
No |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel Arc 140T |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| HDMI ports quantity |
2 |
| HDMI version |
2.1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Design |
|---|
| Cooling type |
Active |
| Product type |
Mini PC barebone |
| On/off switch |
Yes |
| Product colour |
Silver |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Processor special features |
|---|
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Power |
|---|
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Weight & dimensions |
|---|
| Width |
5.67" (144 mm) |
| Depth |
4.41" (112 mm) |
| Height |
1.65" (42 mm) |
| Weight |
21.2 oz (600 g) |
