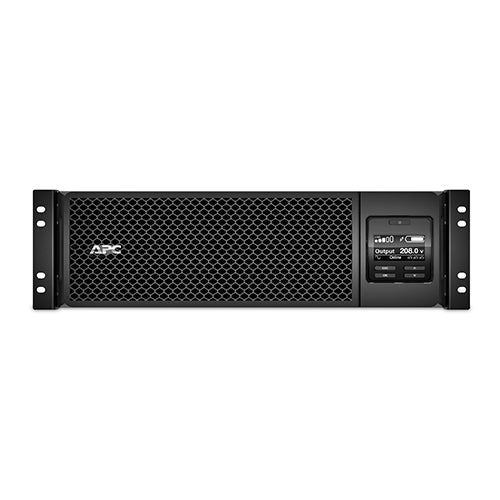

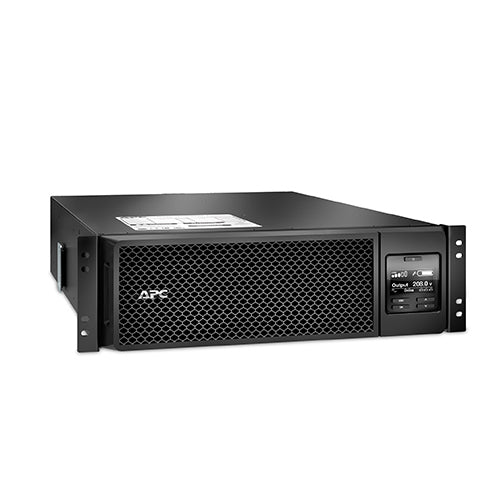

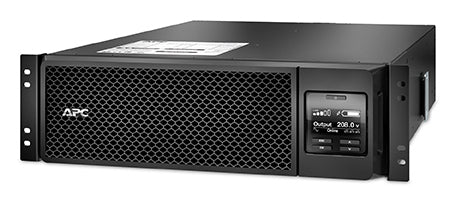

APC SRT5KRMXLT uninterruptible power supply (UPS) Double-conversion (Online) 4.25 kVA 4250 W 4 AC outlet(s)

4.25kW, 5kVA, 208V, 50/60Hz, 840VAh, RJ-45, Serial, SmartSlot, USB, 480J, 3U, 432x719x130mm, Black

Description

Marketing Features

- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Specifications

Power
Output power capacity	4.25 kVA
Output power	4250 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Output frequency	50/60 Hz
Input current Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Surge protection	Yes
Waveform	Sine
Auto-restart	Yes
Noise level	55 dB
LED indicators	Alarm, Status
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	4.25 kVA
Web-based management	Yes
Output power	4250 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Surge protection	Yes
Waveform	Sine
Output frequency	50/60 Hz
Input current Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Auto-restart	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	40 - 70 Hz
Heat dissipation	1047 BTU/h
Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
Cabling technology	10/100Base-T
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery life (max)	5 year(s)
Battery capacity	840 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	1.5 h
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	192 V
Automatic battery test	Yes
Replacement battery cartridge	APCRBC140
Design
Form factor	Rackmount/Tower
Rack capacity	3U
Product colour	Black
International Protection (IP) code	IP20
Certification	CSA C22.2 No.107.3-05, FCC Part 15 Class A, NOM, OSHPD, UL 1778
LED indicators	Alarm, Status
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Warranty period	3 year(s)
Compliance certificates	RoHS
Certificates
Certification	CSA C22.2 No.107.3-05, FCC Part 15 Class A, NOM, OSHPD, UL 1778
Compliance certificates	RoHS
Management features
Web-based management	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	17" (432 mm)
Depth	28.3" (719 mm)
Height	5.12" (130 mm)
Weight	123 lbs (55.8 kg)
Package width	24" (610 mm)
Package depth	37.8" (960 mm)
Package height	13" (330 mm)
Package weight	149.9 lbs (68 kg)
Packaging data
Package width	24" (610 mm)
Package depth	37.8" (960 mm)
Package height	13" (330 mm)
Package weight	149.9 lbs (68 kg)
Logistics data
Products per pallet	6 pc(s)
Warranty period	3 year(s)
