2.88kVA, 2.7kW, 75-154V, 50/60Hz, 459J, 480x683x86mm, 44.28kg, Black
Description

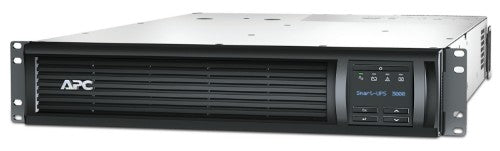

Reliable Backup Power and Protection for Your Valuable IT EquipmentProtect your servers, switches, routers and networking devices while providing battery backup power with Smart-UPS SMT3000RM2UC with APC SmartConnect, the first cloud-enabled UPS for distributed IT. The service-free cloud monitoring feature is accessible from any internet-connected device, and maximizes the life and performance of your UPS by providing proactive advice and life-cycle recommendations so you can remotely monitor your power infrastructure from anywhere.
An Overview of Smart-UPS and the SmartConnect AppAPC SmartConnect makes Smart-UPS more adaptable and easier to deploy than ever before, enabling you to view the status of your UPS through a secure web portal. Through this intuitive remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support; providing you with added value – and more importantly – added peace of mind.
Secure, remote monitoringConnected Smart-UPS support remote monitoring through a secure web portal, so you can always be up to date on the status of your power infrastructure
Proactive lifecycle alertsMaximize the life span of the UPS and protect your investment with proactive alerts for firmware upgrade, device maintenance, and warranty protection.
Cloud enabled as standardSmart-UPS models with SmartConnect are cloud-enabled and have a built-in Ethernet port, making it easy and cost effective to monitor your UPS online
Simple to Use InterfaceOur simple web interface is designed to support both system administrators and non-tech users alike, with clear notifications in plain language
Specifications
| Power |
|---|
| Output power capacity |
2.88 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
459 J |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output frequency |
50/60 Hz |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
96.1" (2.44 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5-15R, NEMA 5–20R |
| Power plug |
NEMA L5-30P |
| USB port |
Yes |
| SmartSlot |
Yes |
| USB 2.0 ports quantity |
1 |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
55 dB |
| LED indicators |
Status |
| Audible alarm(s) |
Yes |
| Temperature voltage compensation |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
2.88 kVA |
| Web-based management |
Yes |
| Output power |
2700 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
459 J |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output frequency |
50/60 Hz |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Temperature voltage compensation |
Yes |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
1 |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount |
| Rack capacity |
2U |
| Product colour |
Black |
| Certification |
FCC, CSA, UL |
| Cable length |
96.1" (2.44 m) |
| LED indicators |
Status |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
FCC, CSA, UL |
| Management features |
|---|
| Web-based management |
Yes |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Screws included |
Yes |
| Resource CD |
Yes |
| Software CD |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
18.9" (480 mm) |
| Depth |
26.9" (683 mm) |
| Height |
3.39" (86 mm) |
| Weight |
97.7 lbs (44.3 kg) |
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Package weight |
114 lbs (51.7 kg) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Screws included |
Yes |
| Resource CD |
Yes |
| Software CD |
Yes |
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Package weight |
114 lbs (51.7 kg) |
| Logistics data |
|---|
| Products per pallet |
8 pc(s) |
| Harmonized System (HS) code |
85078000 |
