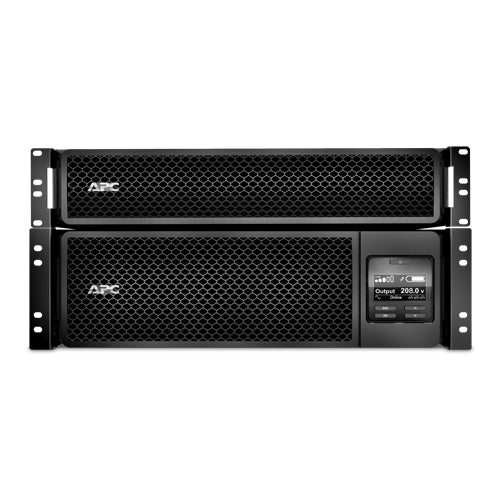

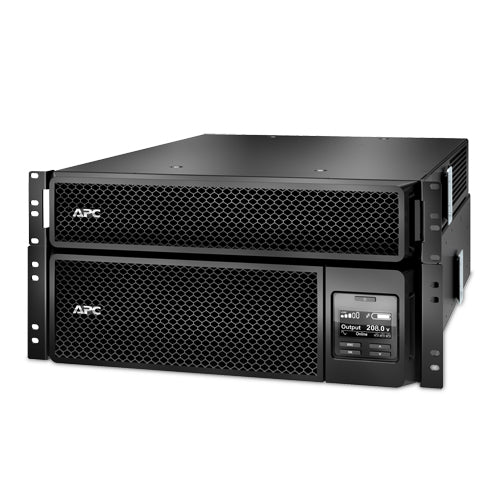

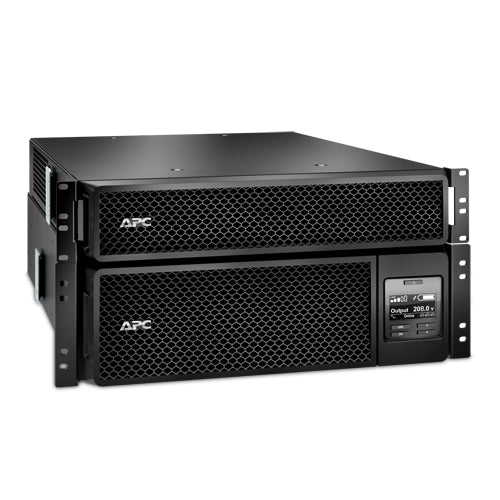

UPS - Step-Down Transformer, 5000VA, Double Conversion Online, 100 - 275 V, 1.5 hour, 480Joules, 208V to 120V, 12xNEMA 5-20R, 5U + 2U.
Description
High density, double-conversion on-line power protection with scalable runtime.- Generator compatible
- Cold-start capable
- Power conditioning
- Frequency and voltage regulation
- 208/240V to 120V Step-Down Transformer
- Resettable circuit breaker
- Safety-agency approved
- Network manageable
- Low operating and maintenance costs with proven reliability and intelligent battery management
- Avoids costly power problems by keeping your IT equipment and data protected and available
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Save time with easy and convenient remote accessibility
Specifications
| Power |
|---|
| Output power capacity |
5 kVA |
| Output power |
4.25 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
208 V |
| Surge energy rating |
480 J |
| Efficiency |
93.4% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| Cable length |
120.1" (3.05 m) |

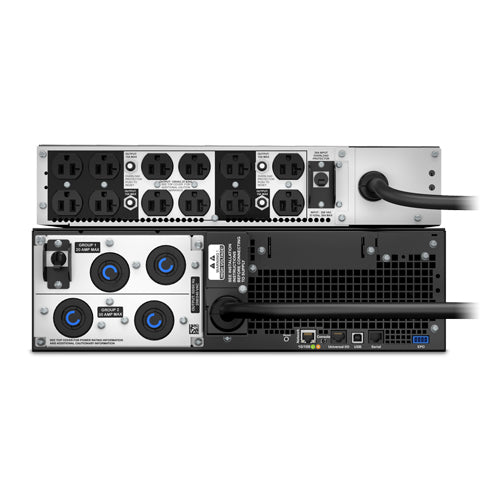

| AC outlets quantity |
15 AC outlet(s) |
| AC outlet types |
NEMA L5-20R, NEMA L6-20R, NEMA L6-30R |
| Power plug |
NEMA L6-30P |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
3 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Power protection features |
Overload |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
55 dB |
| LED indicators |
Battery replacement |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
5 kVA |
| Output power |
4.25 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
208 V |
| Surge energy rating |
480 J |
| Efficiency |
93.4% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Power protection features |
Overload |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40 - 70 Hz |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
1.5 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Battery capacity |
840 Ah |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
5U |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Cable length |
120.1" (3.05 m) |
| LED indicators |
Battery replacement |
| Housing material |
Steel |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
17" (432 mm) |
| Depth |
28.3" (719 mm) |
| Height |
8.58" (218 mm) |
| Weight |
218 lbs (98.9 kg) |
| Package width |
24.5" (622 mm) |
| Package depth |
37.8" (960 mm) |
| Package height |
23" (584 mm) |
| Package weight |
259.9 lbs (117.9 kg) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Resource CD |
Yes |
| Rack mount kit |
Yes |
| Bracket |
Yes |
| Package width |
24.5" (622 mm) |
| Package depth |
37.8" (960 mm) |
| Package height |
23" (584 mm) |
| Package weight |
259.9 lbs (117.9 kg) |
| Logistics data |
|---|
| Products per pallet |
3 pc(s) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Resource CD |
Yes |
| Rack mount kit |
Yes |
| Bracket |
Yes |
