APC NetShelter™ 9000 power distribution unit (PDU) 24 AC outlet(s) 0U Black

Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets

Key Features

• 1-Year Secure Network Management Card subscription included
• Ideal for colocation, large data centers or distributed IT sites
• Remote management of rack PDUs for efficient time-saving
• Plan capacity and balance loads with +/- 1% metering accuracy (amps, volts, kW, kWh)
• Gigabit ethernet connectivity
• Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
• Power sequencing delays determine the order in which power is turned on or off
• Zero U toolless installation

Reasons To Buy

Gigabit Ethernet Connectivity

9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 ethernet connectivity.

Description

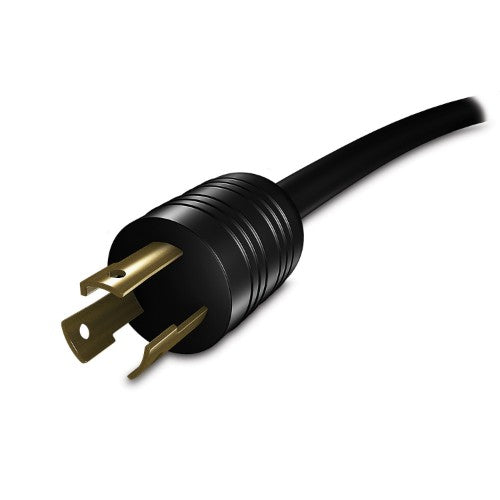

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty

Specifications

Design
PDU types	Switched
Mounting	Vertical
Type	Single-phase
Product colour	Black
Certification	CUL , FCC 15 A, ICES-003, PSE
Rack capacity	0U
Ports & interfaces
Power plug	NEMA L6-30P
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports	1
Features
Certification	CUL , FCC 15 A, ICES-003, PSE
Power
Nominal input voltage	90 - 264 V
Maximum current	30 A
Nominal output voltage	200 - 208 V
Load capacity	4992 VA
Certificates
Certification	CUL , FCC 15 A, ICES-003, PSE
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Weight & dimensions
Weight	18.7 lbs (8.5 kg)
Width	2.17" (55 mm)
Depth	1.81" (46 mm)
Height	72" (1829 mm)
Package width	6.5" (165 mm)
Package depth	4.88" (124 mm)
Package height	80.3" (2040 mm)
Package weight	22 lbs (10 kg)
Packaging content
Manual	Yes
Packaging data
Package width	6.5" (165 mm)
Package depth	4.88" (124 mm)
Package height	80.3" (2040 mm)
Package weight	22 lbs (10 kg)
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
