Tripp Lite N48K-15M8L60-B patch panel 1U
Part number
N48K-15M8L60-B
3,849.53 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.67 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Total of 15 12-fiber MTP/MPO switch ports and 60 LC ports
- Base8 wiring uses all LC ports—no dead ports as in Base12
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
- Hardwired cassettes for 30% improvement in insertion loss
- Easily identifiable color-coded magenta OM4 cables

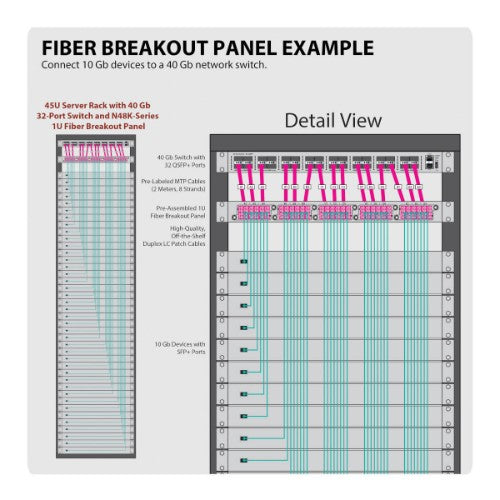

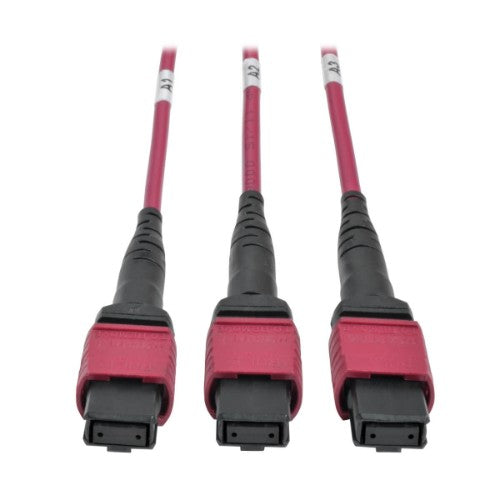

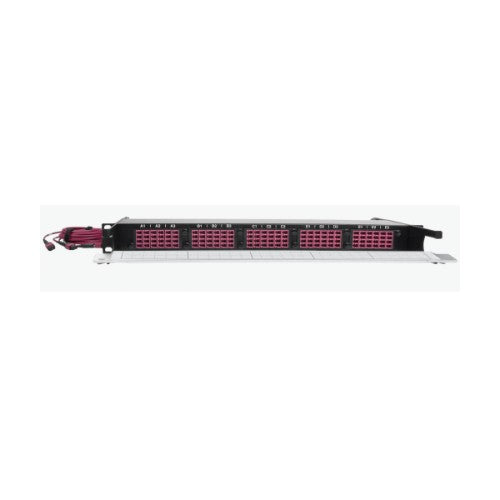

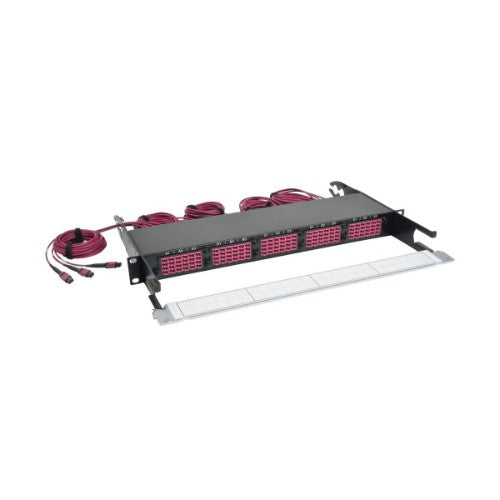

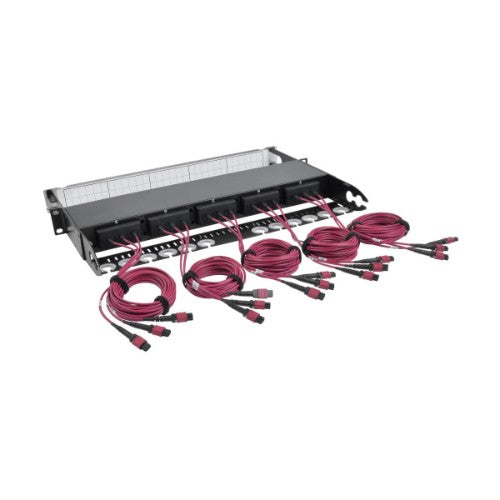

The N48K-15M8L60-B 50/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path from 25Gb to 100Gb, as well as upcoming 50Gb to 200Gb speeds and beyond. The 1U chassis features five breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP multimode cables for a total of 15 QSFP fiber switch ports breaking out to 60 LC ports.
Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-15M8L60-B uses all 60 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.
Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.

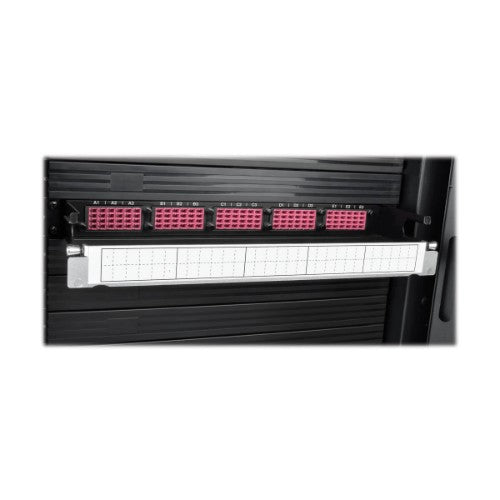

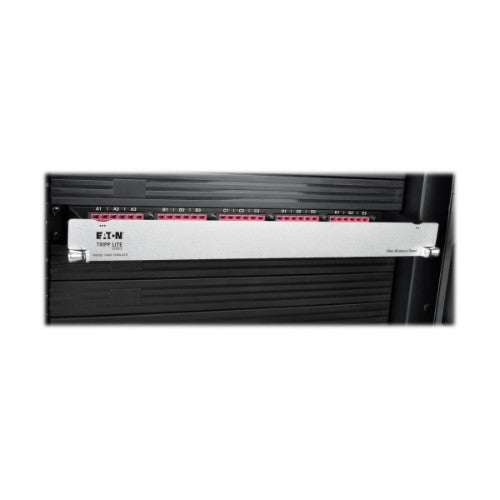

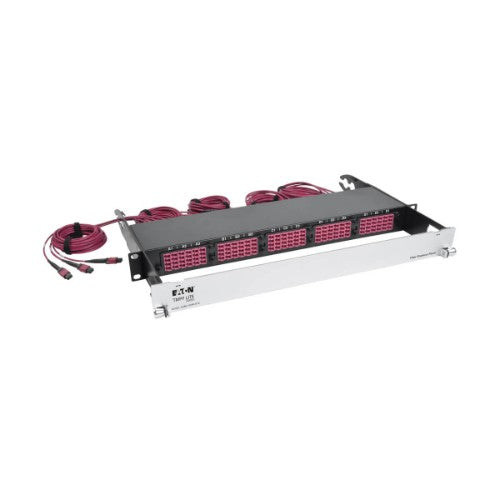

The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette’s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit’s serial number.
Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-15M8L60-B uses all 60 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.
Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections.
The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette’s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit’s serial number.
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Ports quantity | 60 |
| Design | |
| Rack capacity | 1U |
| Mounting | Rack mounting |
| Product colour | Magenta, Black |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging data | |
| Package weight | 8.09 lbs (3.67 kg) |
| Package depth | 18.8" (477.5 mm) |
| Package width | 21.3" (541 mm) |
| Package height | 3.8" (96.5 mm) |
| Features | |
| Rack capacity | 1U |
| Mounting | Rack mounting |
| Product colour | Magenta, Black |
| Technical details | |
| Harmonized System (HS) code | 85371098 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case gross weight | 35.5 lbs (16.1 kg) |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 22.1" (561.3 mm) |
| Master (outer) case length | 19.4" (492.8 mm) |
| Master (outer) case height | 15.8" (401.3 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332200843 |
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| Weight & dimensions | |
| Package weight | 8.09 lbs (3.67 kg) |
| Package width | 21.3" (541 mm) |
| Package height | 3.8" (96.5 mm) |
