- VERSATILE FUNCTIONALITY: These 1U universal rack rails let you mount non-rackmount equipment into your 19" server rack; It is also great for mounting equipment with discontinued OEM equipment
- MEETS INDUSTRY STANDARDS: These server mounting rails adhere to the EIA-310 standard for 19" rackmount equipment; The depth of the rack mount rails is also adjustable
- STURDY CONSTRUCTION: To ensure your equipment is secure, this network equipment mounting rails feature cold-rolled steel construction; The durable design can support a weight load of up to 55lb (25kg)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, these server-rack rails are backed for life, including free lifetime 24/5 multi-lingual technical assistance

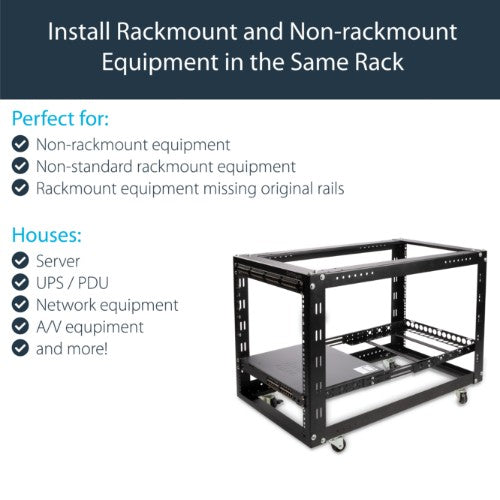

Mount 19" Servers or Networking Hardware in any Standard Rack

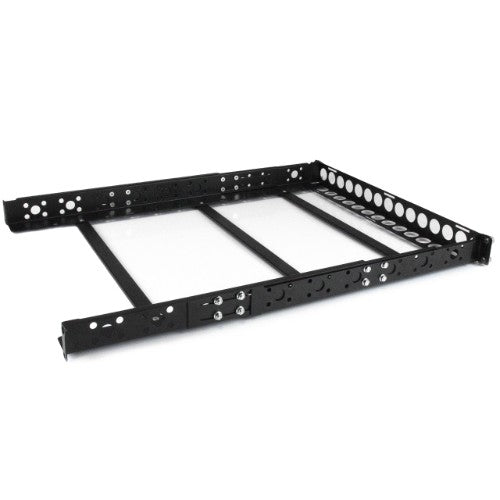

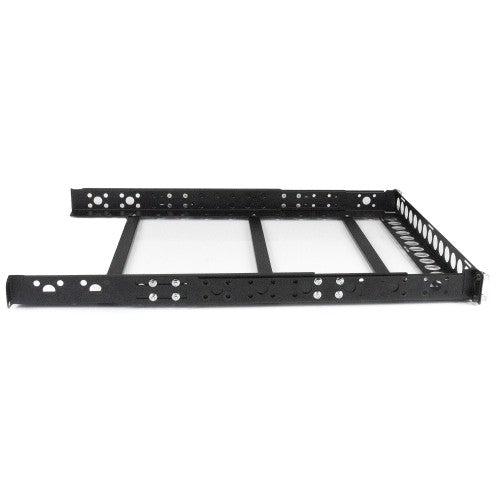

These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.
Turn non-rackmount equipment into 1U rackmount hardware
These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

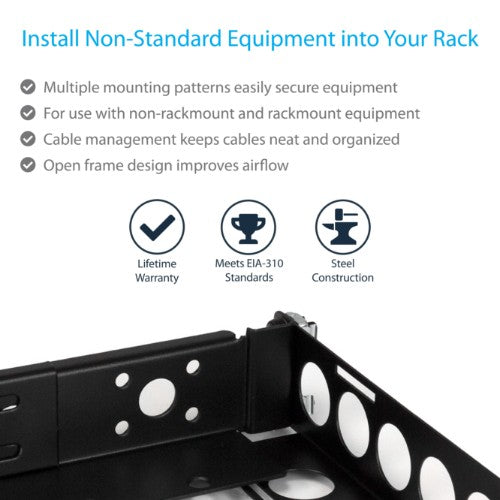

Universal design mounts to almost any 19" server rack
Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.

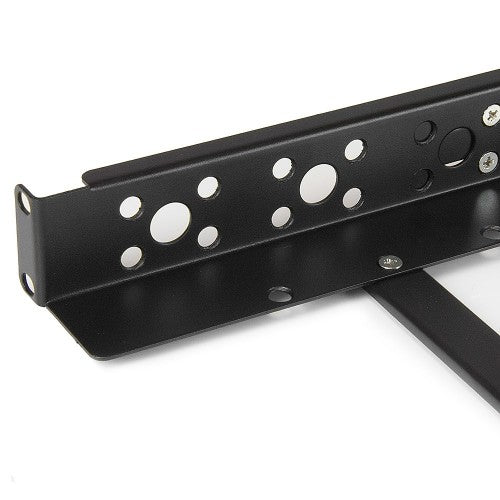

Maximum durability
To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).
The StarTech.com Advantage
These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.
Turn non-rackmount equipment into 1U rackmount hardware
These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.
Universal design mounts to almost any 19" server rack
Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.
Maximum durability
To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).
The StarTech.com Advantage
| Features | |
|---|---|
| Type | Rack rail |
| Size (imperial) | 19" |
| Rack capacity | 1U |
| Maximum weight capacity | 55.1 lbs (25 kg) |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Housing material | Steel |

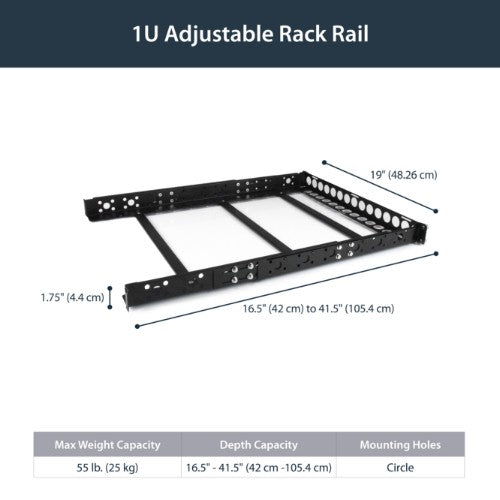

| Weight & dimensions | |
| Package width | 4.21" (107 mm) |
| Package depth | 19.3" (490 mm) |
| Package height | 2.95" (75 mm) |
| Package weight | 6.39 lbs (2.9 kg) |
| Width | 18.9" (481 mm) |
| Weight | 5.73 lbs (2.6 kg) |
| Size (imperial) | 19" |
| Mounting depth (min) | 16.5" (42 cm) |
| Mounting depth (max) | 41.5" (105.4 cm) |
| Height | 1.65" (42 mm) |
| Depth | 43.3" (1100 mm) |
| Packaging data | |
| Package width | 4.21" (107 mm) |
| Package depth | 19.3" (490 mm) |
| Package height | 2.95" (75 mm) |
| Package weight | 6.39 lbs (2.9 kg) |

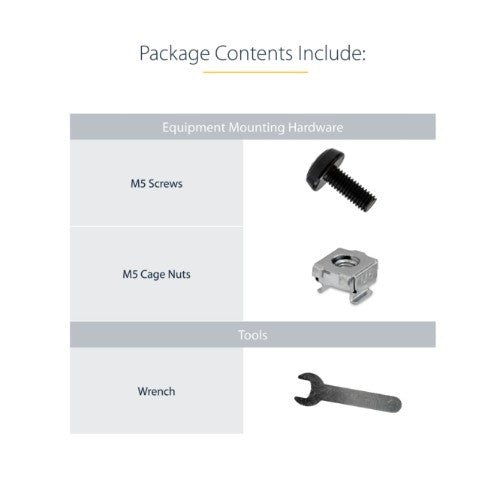

| Packaging content | |
| Screws included | Yes |
| Mounting kit | Yes |
| Number of screws | 8 |
| Screw type | M5 |
| Number of cage nuts | 8 |
| Cage nuts included | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 4.21" (107 mm) |
| Master (outer) case length | 19.3" (490 mm) |
| Master (outer) case height | 2.95" (75 mm) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85389099 |
