StarTech.com MCM110ST2 network media converter 100 Mbit/s 1310 nm
95.45 CAD
Skip to product information
Out of stock

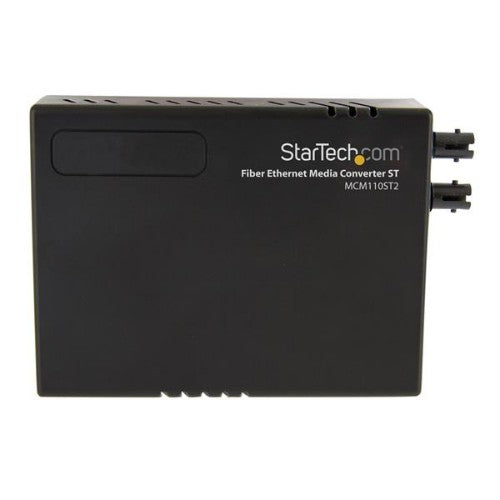

StarTech.com MCM110ST2 network media converter 100 Mbit/s 1310 nm
Part number
MCM110ST2
95.45 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.272 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

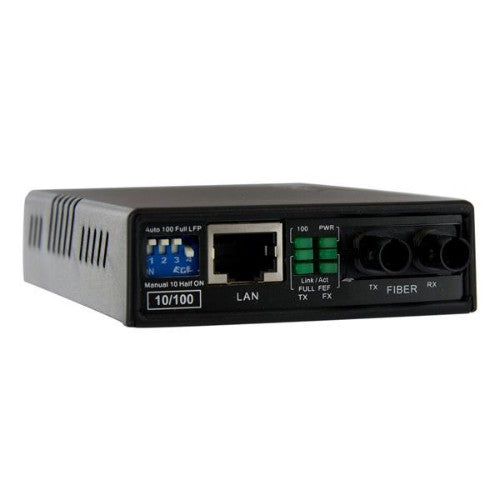

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
| Network | |
|---|---|
| Fiber optic connector | ST |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100BASE-FX, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full, Half |
| Data transfer rate | 100 Mbit/s |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | ST |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Sensitivity | -31 dBmW |
| Wavelength-division multiplexing (WDM) | No |
| Link budget | 11 dB |
| Mean time between failures (MTBF) | 65000 h |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Certification | CE, FCC, TAA, REACH |
| Power | |

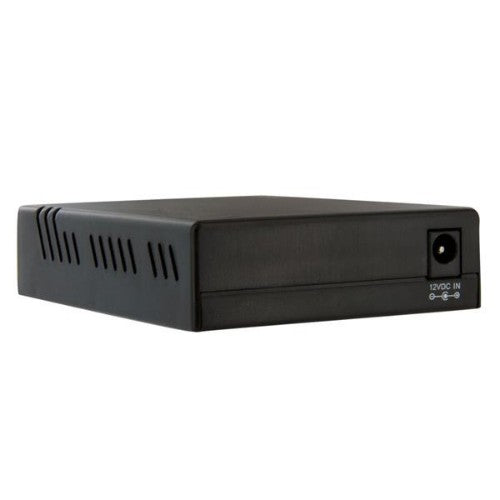

| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power consumption (typical) | 2.4 W |
| Power plug type | Type M |
| Power over Ethernet (PoE) | No |
| Technical details | |
| Data transfer rate | 100 Mbit/s |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 3.74" (95 mm) |
| Height | 0.787" (20 mm) |
| Weight | 2.89 oz (82 g) |
| Package width | 5.71" (145 mm) |
| Package depth | 6.89" (175 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 9.63 oz (273 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width | 5.71" (145 mm) |
| Package depth | 6.89" (175 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 9.63 oz (273 g) |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| Link budget | 11 dB |
