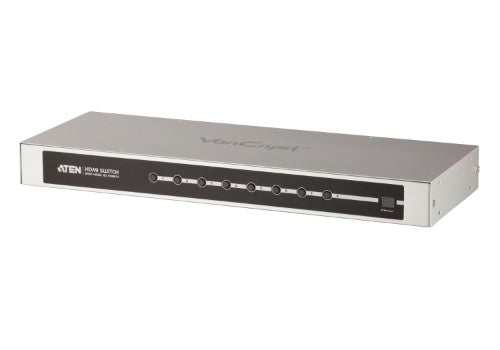

ATEN VS0801H video switch HDMI
235.99 CAD
Skip to product information
Out of stock
ATEN VS0801H video switch HDMI
Part number
VS0801H
235.99 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.75 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Allows up to eight HDMI sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control
- Built-in bi-directional RS-232 serial port for high-end system control *
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission - up to 15 m (24 AWG)
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
- HDMI (3D, Deep Color)
- Plug-and-play - no software installation required
- DDC compatible
- HDCP 1.4 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Signaling rates up to 2.25 Gbps in support of 1080p display
- All-metal casing
- Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device
- Easy and affordable way to add eight HDMI inputs to your home theater system
- Rack Mountable
- Note: The VS0801H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
ATEN VS0801H. Video port type: HDMI, Video in: 8 x HDMI Type A Female (Black), Video out: 1 x HDMI Type A Female (Black). Material: Metal, Product color: Black, Silver, Maximum refresh rate: 60 Hz. Power consumption (typical): 3.71 W. Width: 17.2" (437 mm), Depth: 6.29" (159.8 mm), Height: 1.73" (44 mm)
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 1 x HDMI Type A Female (Black) |
| Video in | 8 x HDMI Type A Female (Black) |
| RS-232 ports | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 9 |
| Number of HDMI outputs | 1 |
| HDMI in | 8 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black, Silver |
| Output impedance | 100 Ω |
| Input impedance | 100 Ω |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 590.6" (15 m) |
| Material | Metal |
| HDCP | Yes |
| HD type | Full HD |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| 3D | Yes |
| Power | |
| Power consumption (typical) | 3.71 W |
| Weight & dimensions | |
| Width (imperial) | 17.2" |
| Width | 17.2" (437 mm) |
| Weight | 3.86 lbs (1.75 kg) |
| Height (imperial) | 1.73" |
| Height | 1.73" (44 mm) |
| Depth | 6.29" (159.8 mm) |
| Depth (imperial) | 6.29" |
| Packaging content | |
| User guide | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
