Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cable

This 3-Port HDBaseT™ extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.

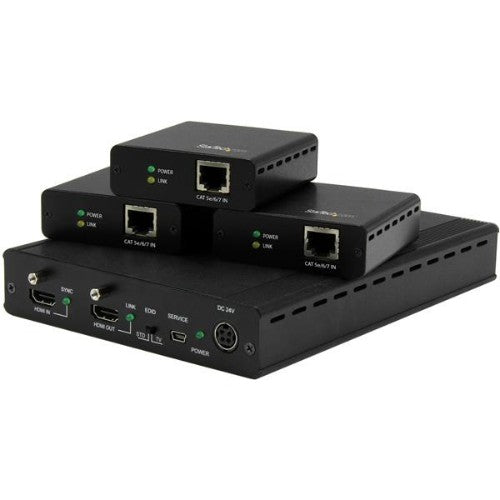

A complete extender kit that includes transmitter and receivers

This all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It’s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments.

Astonishing 4K picture quality from an impressive distance

With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source.

The extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great.

Professional installation

HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars or restaurants.

What is HDBaseT?

HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.

Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.

The ST124HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat7
Rack mounting	Yes
HDCP & EDID bypass	Yes
Daisy chain	Yes
Maximum refresh rate	30 Hz
Maximum transfer distance	2755.9" (70 m)
Supported video modes	720p, 1080p, 2160p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
LED indicators	Link, Power
Certification	CE, FCC, TAA
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
RJ-45 input ports	3
RJ-45 output ports	3
HDMI in	1
Number of HDMI outputs	4
DC-in jack	Yes
Power
Input current	1.5 A
Output current	2.7 A
AC input voltage	100 - 240 V
Power consumption (typical)	64.8 W
Operating voltage	24 V
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	2.2 lbs (1 kg)
Width	5.71" (145 mm)
Height	1.18" (30 mm)
Depth	7.87" (200 mm)
Packaging data
Package width	11.8" (299 mm)
Package weight	5.73 lbs (2.6 kg)
Package height	3.86" (98 mm)
Package depth	14.3" (363 mm)
Packaging content
IR receiver included	Yes
IR blaster included	Yes
Quick start guide	Yes
AC adapter included	Yes
Included power plug types	AU, EU, NA, UK
Technical details
Country of origin	Taiwan
Audio support	Yes
Compliance certificates	RoHS
Logistics data
Master (outer) case width	14.7" (374 mm)
Master (outer) case length	20.1" (510 mm)
Master (outer) case height	12.6" (319 mm)
Products per master (outer) case	5 pc(s)
