2 left

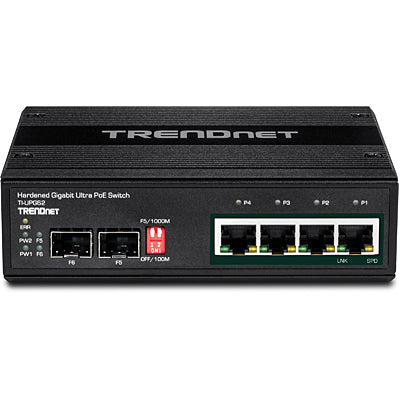

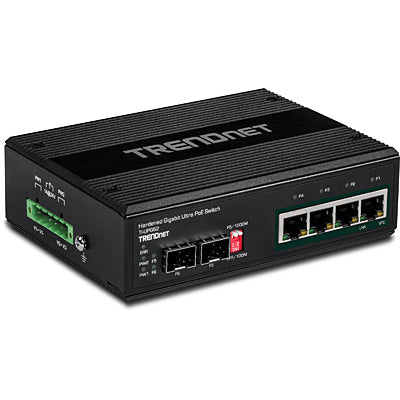

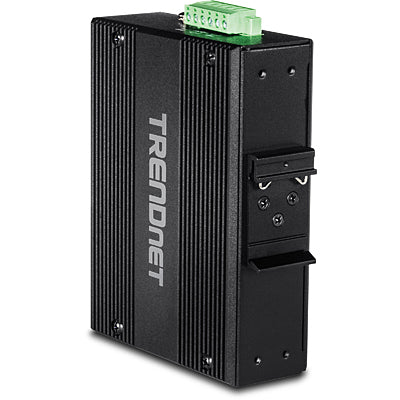

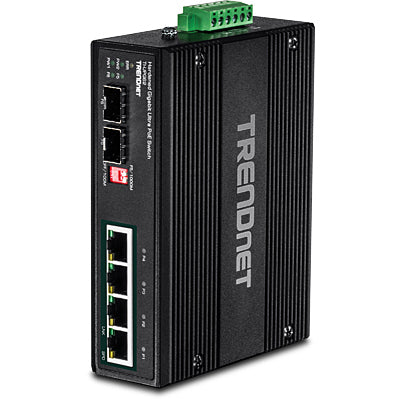

Trendnet TI-UPG62 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TI-UPG62
$499.76 CAD
6-Port Hardened Industrial Gigabit PoE++ DIN-Rail Switch
Key Features
- 4 x Gigabit PoE++ ports
- 1x Gigabit share port
- 2 x Gigabit SFP slots
- 240W power budget
- 12Gbps switching capacity
- Hardened IP30 rated metal switch

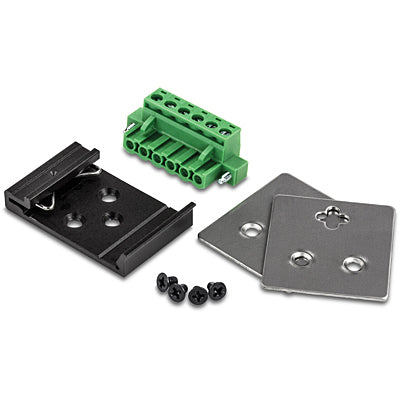

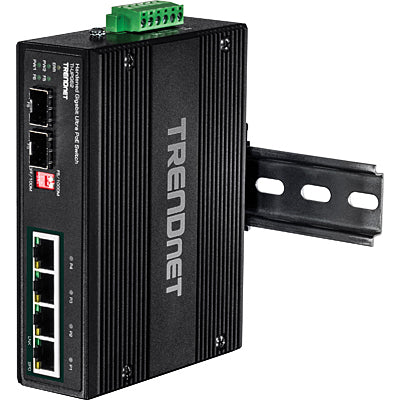

- Includes DIN-rail and wall mounts
- Wide operating temperature range of -40° – 75° C (-40° – 167° F)

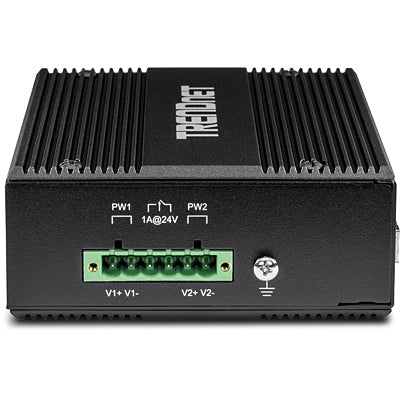

- Dual power inputs for redundancy
- Alarm output triggered by power failure
- NDAA / TAA compliant
Description
TRENDnet’s TI-UPG62 is a reliable IP30 unmanaged DIN-rail Ultra PoE switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit Ultra PoE ports, 240 W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 1024 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames | 9000 |
| Throughput | 8.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | FCC, CE RoHS |
| Power | |
| Power protection features | Overload |
| Power consumption (max) | 5.76 W |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power protection features | Overload |
| Other features | |
| Terminal block port | Yes |
| Input voltage | 48 - 56 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 5.63" (143 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.42" (36 mm) |
| Weight | 18.1 oz (514 g) |
| Packaging content | |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Terminal block included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Terminal block included | Yes |
| Quick start guide | Yes |
| Performance | |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC, CE RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
