Ubiquiti Networks NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
61.12 CAD
Skip to product information
Out of stock
Ubiquiti Networks NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
Part number
LOCOM2
61.12 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.18 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

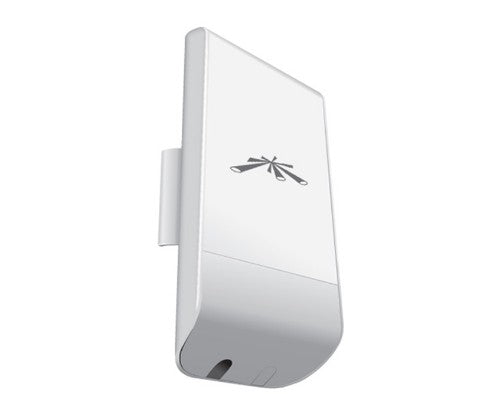

Compact CPE Design
The NanoStationM features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
| Performance | |
|---|---|
| Maximum data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| 2.4 GHz | Yes |
| Frequency band | 2.412-2.462 GHz |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum outdoor range | 393700.8" (10000 m) |
| Certification | RoHS |
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 400 MHz |
| Processor architecture | MIPS 24Kc |
| Features | |
| Maximum data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| 2.4 GHz | Yes |
| Frequency band | 2.412-2.462 GHz |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum outdoor range | 393700.8" (10000 m) |
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 400 MHz |
| Processor architecture | MIPS 24Kc |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 5.5 W |
| Input current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | White |
| Certification | RoHS |
| Antenna | |
| Antenna gain level (max) | 8 dBi |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 3.15" (80 mm) |
| Depth | 1.22" (31 mm) |
| Height | 6.42" (163 mm) |
| Weight | 6.35 oz (180 g) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 75 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
