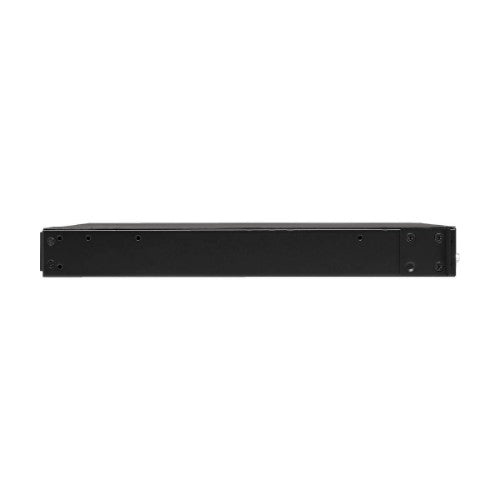

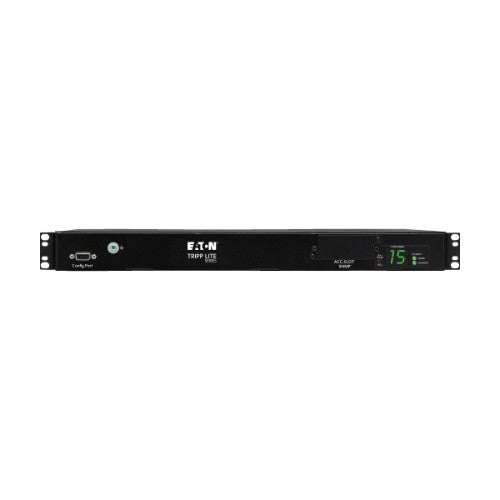

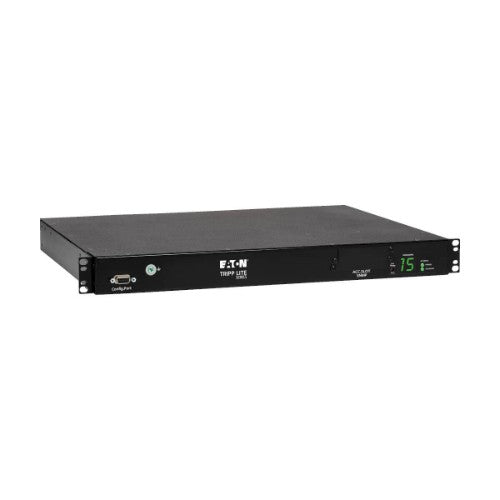

Tripp Lite PDUMH15HVAT power distribution unit (PDU) 10 AC outlet(s) 1U Black
696.22 CAD
Skip to product information
Out of stock
Tripp Lite PDUMH15HVAT power distribution unit (PDU) 10 AC outlet(s) 1U Black
Part number
PDUMH15HVAT
Sale price
696.22 CAD
Regular price
944.63 CAD
Taxes and shipping calculated at checkout.
Save
248.41 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
7.06 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Single-phase IEC-320 C14 input and 200–240V output
- 10 C13 outlets; compatible with Eaton Tripp Lite power cords
- Automatic transfer switching within 5 ms
- Mounts in 1U of space in EIA-standard 19 in. racks
- Digital load meter for real-time output current monitoring
The PDUMH15HVAT 2–2.4kW Single-Phase 200–240V Local Metered Automatic Transfer Switch / ATS PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.

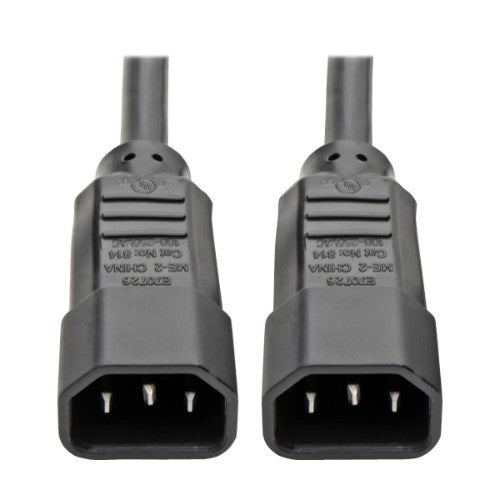

Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200–240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional WEBCARDLX (sold separate), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200–240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional WEBCARDLX (sold separate), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
| Design | |
|---|---|
| PDU types | Metered, Switched |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | TAA |
| Rack capacity | 1U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | IEC 320 |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C14 coupler |
| Features | |
| LED indicators | Status |
| Cable length | 144.1" (3.66 m) |
| Certification | TAA |
| Ergonomics | |
| LED indicators | Status |
| Cable length | 144.1" (3.66 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum power | 2400 W |
| Maximum current | 10 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | TAA |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 10.3 lbs (4.68 kg) |
| Size (imperial) | 19" |
| Width | 17.3" (440 mm) |
| Depth | 14.4" (367 mm) |
| Height | 1.71" (43.4 mm) |
| Package width | 20.3" (515 mm) |
| Package depth | 22.8" (580 mm) |
| Package height | 4.33" (110 mm) |
| Package weight | 15.6 lbs (7.06 kg) |
| Packaging data | |
| Package width | 20.3" (515 mm) |
| Package depth | 22.8" (580 mm) |
| Package height | 4.33" (110 mm) |
| Package weight | 15.6 lbs (7.06 kg) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
