Tripp Lite PDUMH30 power distribution unit (PDU) 12 AC outlet(s) 1U Black
483.20 CAD
Skip to product information
Out of stock
Tripp Lite PDUMH30 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Part number
PDUMH30
Sale price
483.20 CAD
Regular price
655.61 CAD
Taxes and shipping calculated at checkout.
Save
172.41 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.478 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help network managers prevent overloads and plan for future growth. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

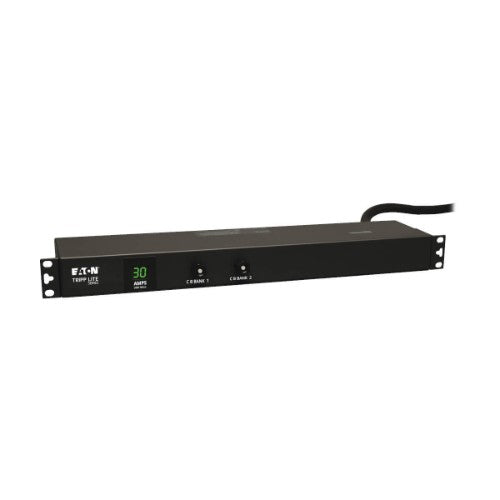

- Two-digit lighted meter reports total PDU input current in amps
- Attached L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

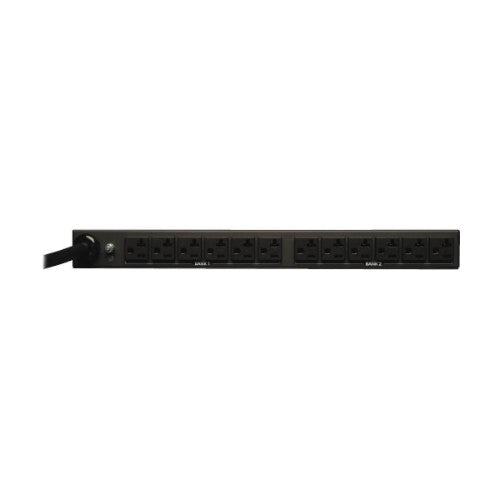

- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30TAA
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Two-digit lighted meter reports total PDU input current in amps
- Attached L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30TAA
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Features | |
| LED indicators | Yes |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 30 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 6.5 x 1.75" (445 x 165 x 44.5 mm) |
| Weight | 6.11 lbs (2.77 kg) |
| Width | 17.5" (445 mm) |
| Depth | 6.5" (165 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 3.2" (81.3 mm) |
| Package depth | 20.2" (513.1 mm) |
| Package height | 11" (279.4 mm) |
| Package weight | 6.11 lbs (2.77 kg) |
| Packaging data | |
| Package width | 3.2" (81.3 mm) |
| Package depth | 20.2" (513.1 mm) |
| Package height | 11" (279.4 mm) |
| Package weight | 6.11 lbs (2.77 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332157673 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 19.9" (505.5 mm) |
| Master (outer) case length | 20.6" (523.2 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 48.7 lbs (22.1 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
