Mount your server, network and telecom devices to the wall, while storing your non-rackmountable equipment on the built-in shelf

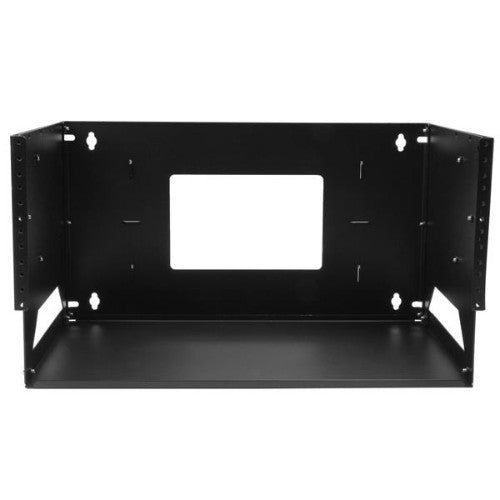

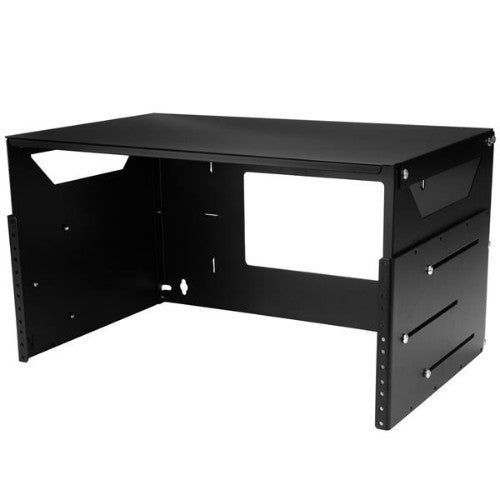

This wall-mount rack provides 4U of space for mounting your servers or A/V equipment to a wall. The rack also has a built-in shelf to create a sturdy surface for storing equipment that is not rack-mountable.

Customize your setup

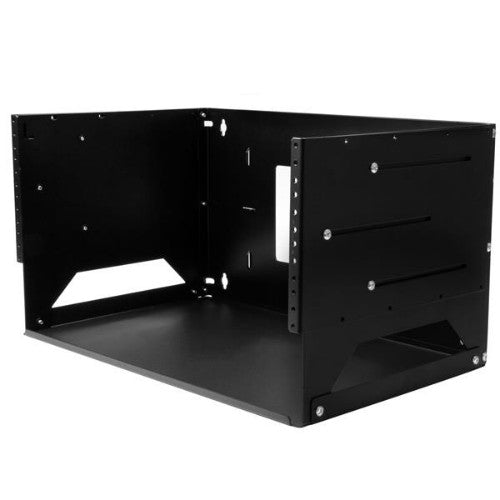

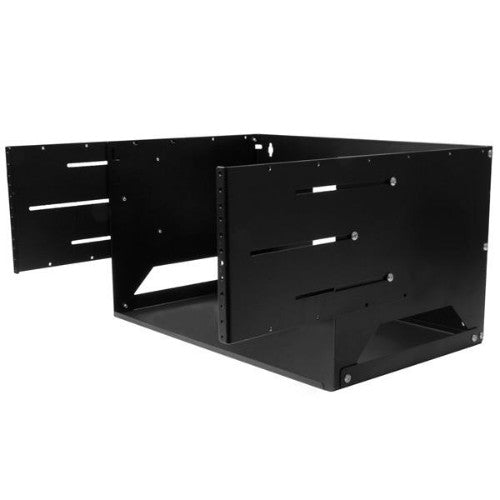

The wall-mount bracket features an adjustable mounting depth of 12 inches to 18 inches as well as a dual-position 12 in. shelf that can be at either the top or the bottom depending on rack’s positioning. These two features allow you to customize both depth and layout to best fit your equipment and cables, ensuring that the rack suits your space.

Make the most of your available space

The 4U rack wall mounting feature allows you to free up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.

Ensure a secure and hassle-free installation

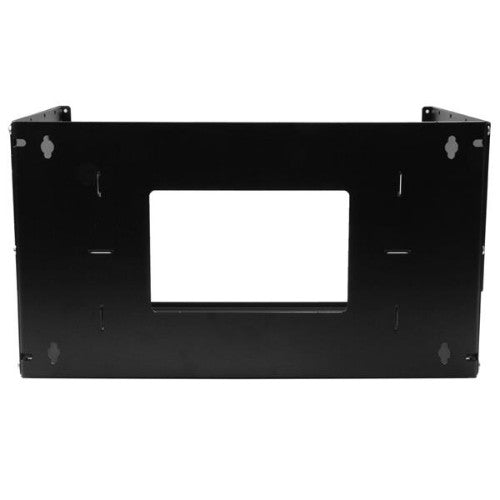

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment and with the wall mounting holes positioned 16” apart, it exactly matches standard drywall construction framework, to ensure simple and secure wall-stud anchoring.

For hassle-free equipment installation, the rack features 10-32 tapped rails, so you can mount your equipment directly to the rail and avoid the hassle of using cage nuts.

Save money, with a cost-effective, compact shipping package

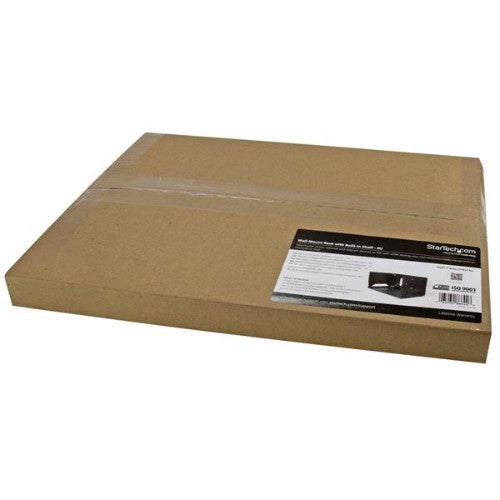

The wall-mount rack comes in a flat-packed box to reduce shipping volume, which significantly reduces your costs in shipping while also providing greater protection than offered by pre-assembled racks. Packaged efficiently, you can easily store and transport the rack for deployment at a later date or in a different location than where it's received.

The WALLSHELF4U is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Weight & dimensions
Package width	15.2" (386 mm)
Package depth	19.9" (506 mm)
Package height	1.69" (43 mm)
Package weight	17 lbs (7.69 kg)
Mounting depth (min)	17.8" (45.1 cm)
Width	19" (483 mm)
Depth	12" (305 mm)
Height	10.6" (268 mm)
Inner width	18.7" (47.4 cm)
Inner depth	17.8" (45.1 cm)
Weight	13.7 lbs (6.2 kg)
Packaging content
Nuts included	Yes
Manual	Yes
Screws included	Yes
Number of screws	34
Features
Castor wheels	No
Adjustable mounting rails	Yes
Cable management	No
Mounting hole shape	Round
Type	Wall mounted rack
Rack capacity	4U
Maximum weight capacity	75 lbs (34 kg)
Frame type	Open
Product design	2-post
Product colour	Black
Material	Steel
Certification	RoHS, TAA
Packaging data
Nuts included	Yes
Manual	Yes
Package width	15.2" (386 mm)
Package depth	19.9" (506 mm)
Package height	1.69" (43 mm)
Package weight	17 lbs (7.69 kg)
Screws included	Yes
Number of screws	34
Technical details
Harmonized System (HS) code	85381000
Rack capacity	4U
Logistics data
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA-310-D, EIA RS310-C
