Out of stock

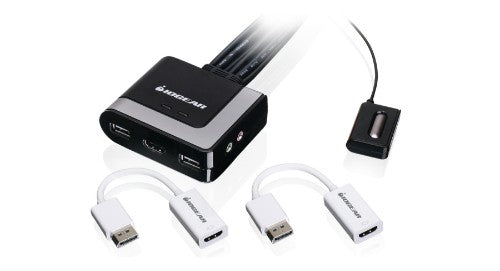

IOGEAR's HDMI and DisplayPort KVM Solution enables effortless control over two computers using a single USB keyboard, a USB mouse and a monitor with HDMI connection or HDTV. This bundle is perfect for a home office or small / medium size business, as it offers the flexibility of choosing between HDMI and/or DisplayPort connections. Take advantage of your existing computers, and use the included DisplayPort adapters to display your content on a large HDMI display or HDMI projector.
Also, the included DisplayPort to HDMI adapter supports the DisplayPort 1.1a standard, giving you the ability to send high resolution video up to 1920x1200 to your external HDMI display or projector.
Straight Forward Connectivity
For added accessibility, the GCS62HU features USB 2.0 peripheral sharing via the mouse port; connect a powered USB Hub to expand your USB connectivity**. Simply connect your microphone and set of powered speakers to the KVM switch and enjoy rich bass in surround sound from the connected computer. The HD - DisplayPort Cable KVM bundle is a simple Plug-N-Play out-of-box solution, including all of the necessary cabling required to fit your needs.
Cost Effective Security
The 2-Port HD Cable KVM Switch with Audio is a simple Plug-N-Play out-of-box solution, including all of the necessary cabling required to fit your needs. It offers a cost effective solution to increase security by allowing users to switch between the Internet connected PC and an Intranet connected PC. This HDMI KVM switch works seamlessly with multiplatform OS such as Windows®, Mac OS®, Oracle®, and Linux®.

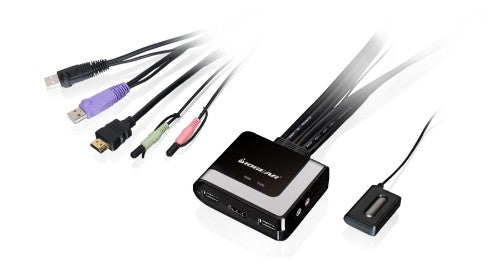

iogear GCS62HDPKIT KVM switch Black,Grey
Part number
GCS62HDPKIT
$115.32 CAD
2-Port HD Cable KVM with DisplayPort Adapters
Description
HD and DisplayPort Mix & Match SolutionIOGEAR's HDMI and DisplayPort KVM Solution enables effortless control over two computers using a single USB keyboard, a USB mouse and a monitor with HDMI connection or HDTV. This bundle is perfect for a home office or small / medium size business, as it offers the flexibility of choosing between HDMI and/or DisplayPort connections. Take advantage of your existing computers, and use the included DisplayPort adapters to display your content on a large HDMI display or HDMI projector.
Also, the included DisplayPort to HDMI adapter supports the DisplayPort 1.1a standard, giving you the ability to send high resolution video up to 1920x1200 to your external HDMI display or projector.
Straight Forward Connectivity
For added accessibility, the GCS62HU features USB 2.0 peripheral sharing via the mouse port; connect a powered USB Hub to expand your USB connectivity**. Simply connect your microphone and set of powered speakers to the KVM switch and enjoy rich bass in surround sound from the connected computer. The HD - DisplayPort Cable KVM bundle is a simple Plug-N-Play out-of-box solution, including all of the necessary cabling required to fit your needs.
Cost Effective Security
The 2-Port HD Cable KVM Switch with Audio is a simple Plug-N-Play out-of-box solution, including all of the necessary cabling required to fit your needs. It offers a cost effective solution to increase security by allowing users to switch between the Internet connected PC and an Intranet connected PC. This HDMI KVM switch works seamlessly with multiplatform OS such as Windows®, Mac OS®, Oracle®, and Linux®.
Specifications
| Performance | |
|---|---|
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,5,10,20 s |
| Maximum digital resolution | 1920 x 1200 pixels |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 2 |
| HDMI ports quantity | 2 |
| HDCP | Yes |
| Display connection | Yes |
| Console ports | 3.5mm headphone,3.5mm mic,HDMI,USB A |
| Design | |
| Product colour | Black,Grey |
| Rack mounting | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| System requirements | |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8.1,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS 9.0,Mac OS 9.1,Mac OS 9.2,Mac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Other operating systems supported | Yes |
| Technical details | |
| Display connection | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 3.12" (79.3 mm) |
| Depth | 1" (25.4 mm) |
| Height | 2.5" (63.5 mm) |
| Weight | 15.2 oz (430 g) |
| Package width | 6.5" (165.1 mm) |
| Package depth | 2.75" (69.9 mm) |
| Package height | 7.5" (190.5 mm) |
| Package weight | 20.8 oz (590 g) |
| Packaging data | |
| Package type | Box |
| Package width | 6.5" (165.1 mm) |
| Package depth | 2.75" (69.9 mm) |
| Package height | 7.5" (190.5 mm) |
| Package weight | 20.8 oz (590 g) |
| Packaging content | |
| Manual | Yes |
| Package type | Box |
