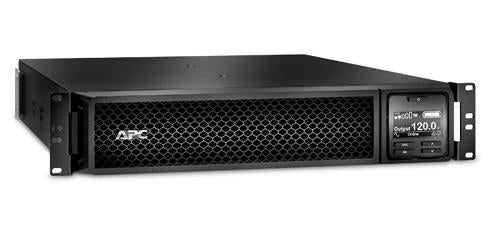

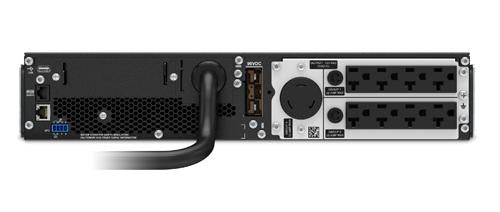

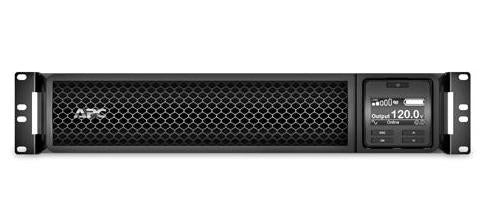

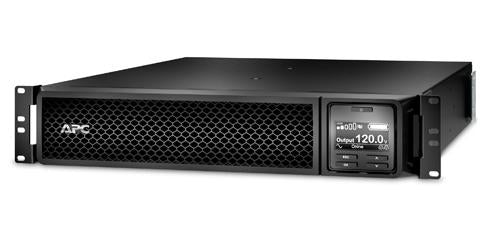

APC SRT3000RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W
Part number
SRT3000RMXLA
Regular price
$4,754.48 CAD
Sale price
$4,515.92 CAD
Smart-UPS On-Line, 3kVA, Rackmount 2U, 120V, 8x 5-20R+1x L5-30R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 9 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This 2700 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card.Specifications
| Power | |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Input operation voltage (min) | 108 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 340 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| Cable length | 96.1" (2.44 m) |
| AC outlet types | NEMA 5–20R, NEMA L5-20R |
| Power plug | NEMA L5-30P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Surge protection | Yes |
| Waveform | Sine |
| Auto-restart | Yes |
| Noise level | 55 dB |
| LED indicators | Alarm, Status |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Input operation voltage (min) | 108 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Waveform | Sine |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Auto-restart | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Input frequency | 40 - 70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 10.3 min |
| Typical backup time at full load | 3.3 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Battery capacity | 454 Ah |
| Automatic battery test | Yes |
| Replacement battery cartridge | APCRBC152 |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
| Cable length | 96.1" (2.44 m) |
| LED indicators | Alarm, Status |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 17" (432 mm) |
| Depth | 25" (635 mm) |
| Height | 3.35" (85 mm) |
| Weight | 69 lbs (31.3 kg) |
| Package width | 23.6" (599 mm) |
| Package depth | 34.3" (871 mm) |
| Package height | 9.69" (246 mm) |
| Package weight | 88 lbs (39.9 kg) |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Resource CD | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 23.6" (599 mm) |
| Package depth | 34.3" (871 mm) |
| Package height | 9.69" (246 mm) |
| Package weight | 88 lbs (39.9 kg) |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Certificates | |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Resource CD | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Software CD | Yes |
