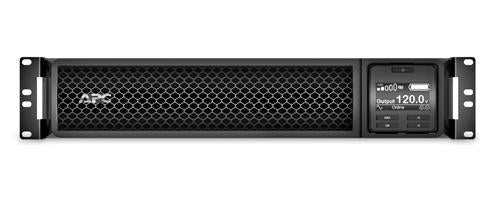

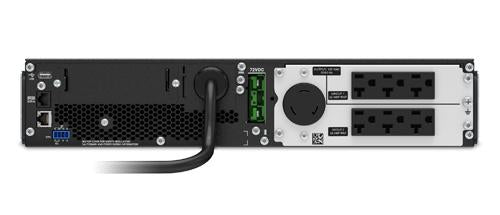

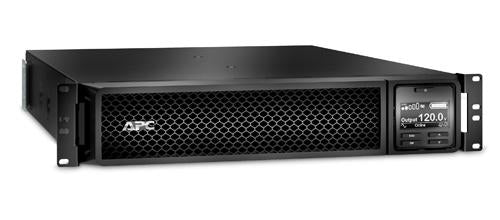

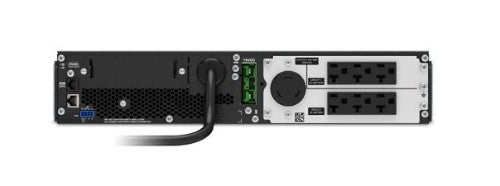

APC SRT2200RMXLA-NC uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W
Part number
SRT2200RMXLA-NC
Regular price
$3,447.23 CAD
Sale price
$3,272.77 CAD
Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. This On-Line UPS features Unity Power Factor for best-in-class power density. With 7 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This UPS includes a pre-installed Network Management Card (model AP9631) via the SmartSlot, to remotely monitor and control the UPS by connecting it directly to the network. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. Audible alarms also provide notification of changing utility power and UPS conditions. The SRT2200RMXLA-NC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. This 1800 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card.Specifications
| Power | |
|---|---|
| Output power capacity | 2.2 kVA |
| Output power | 1800 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 340 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlet types | NEMA 5–20R, NEMA L5-20R |
| Power plug | NEMA 5-20P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Surge protection | Yes |
| Auto-restart | Yes |
| Noise level | 55 dB |
| LED indicators | Alarm, Status |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 1800 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Auto-restart | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Battery capacity | 306 Ah |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
| Cable length | 72" (1.83 m) |
| LED indicators | Alarm, Status |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 17" (432 mm) |
| Depth | 23" (584 mm) |
| Height | 3.35" (85 mm) |
| Weight | 55.1 lbs (25 kg) |
| Package width | 23.6" (599 mm) |
| Package depth | 31.9" (810 mm) |
| Package height | 9.69" (246 mm) |
| Package weight | 75 lbs (34 kg) |
| Packaging data | |
| Package width | 23.6" (599 mm) |
| Package depth | 31.9" (810 mm) |
| Package height | 9.69" (246 mm) |
| Package weight | 75 lbs (34 kg) |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Certificates | |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
