ATEN VS481B video switch HDMI
115.47 CAD
Skip to product information
Out of stock
ATEN VS481B video switch HDMI
Part number
VS481B
115.47 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.47 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP compatible
- Auto switching modes for auto port selection
- Long distance transmission – up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- Supports IR extension using a IR extension cable *
- LED indication of video source devices
- Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

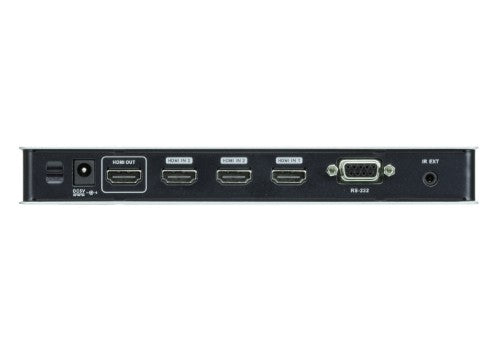

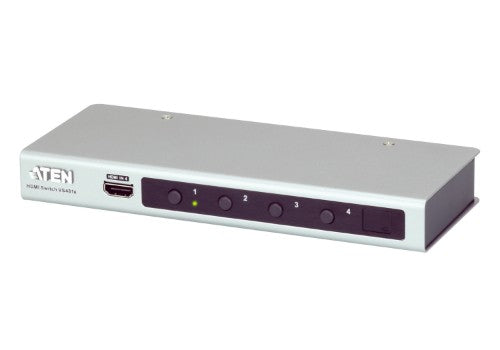

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black, White |
| Supported video modes | 480p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Material | Metal |
| LED indicators | Yes |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Width | 7.87" (200 mm) |
| Weight | 16.6 oz (470 g) |
| Height | 0.984" (25 mm) |
| Depth | 3.25" (82.5 mm) |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
