The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility

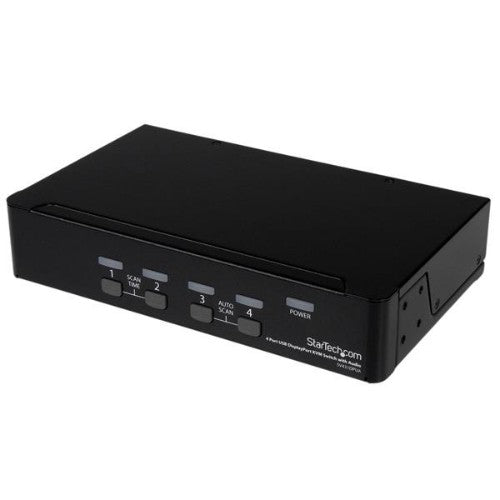

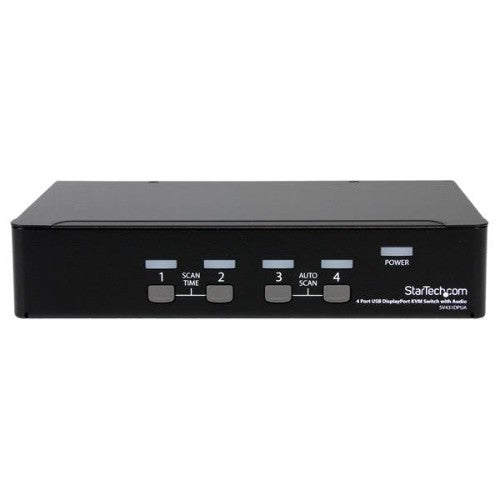

StarTech.com SV431DPUA KVM switch Black
Part number
SV431DPUA
Regular price
$421.94 CAD
Sale price
$419.60 CAD
StarTech.com 4 Port DisplayPort KVM Switch w/ Audio - USB, Keyboard, Video, Mouse, Computer Switch Box for 2560x1600 DP Monitor (SV431DPUA)
Description
Share keyboard, mouse, and DisplayPort display between four HD multimedia systemsThe SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Number of microphone inputs | 5 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 5 |
| DC-in jack | Yes |
| Console USB ports quantity | 4 |

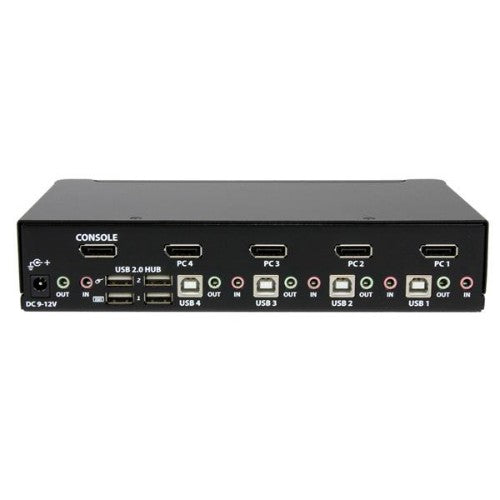

| Console ports | DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| USB hub | Yes |
| Performance | |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| Number of users | 1 user(s) |
| Maximum digital resolution | 2560 x 1600 pixels |
| DDC2B support | Yes |
| Daisy chain | No |
| Audio channels | 7.1 |
| Design | |
| Product colour | Black |
| Push button | Yes |
| Mean time between failures (MTBF) | 136000 h |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, UL, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Input voltage | 100 - 240 V |
| Video | |
| Maximum resolution | 3840 x 2400 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
| Technical details | |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |

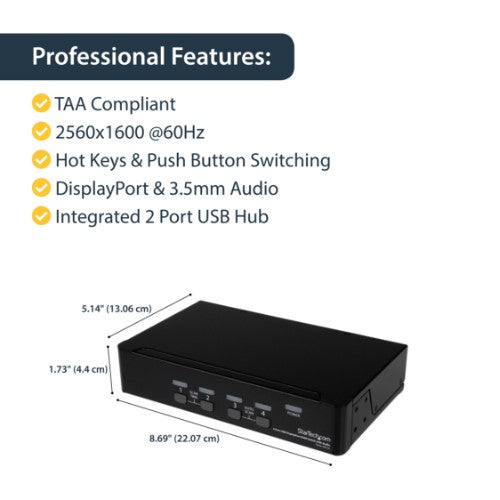

| Width | 8.7" (221 mm) |
| Depth | 5.14" (130.6 mm) |
| Height | 1.73" (44 mm) |
| Weight | 2.2 lbs (1 kg) |
| Package width | 8.43" (214 mm) |
| Package depth | 16.2" (411 mm) |
| Package height | 3.43" (87 mm) |
| Package weight | 3.53 lbs (1.6 kg) |
| Packaging data | |
| Package width | 8.43" (214 mm) |
| Package depth | 16.2" (411 mm) |
| Package height | 3.43" (87 mm) |
| Package weight | 3.53 lbs (1.6 kg) |

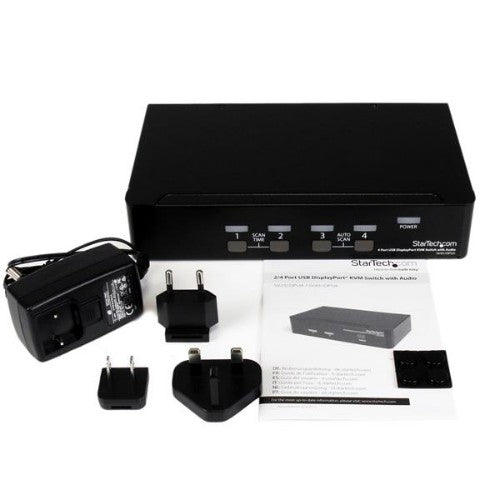

| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, UL, TAA, REACH |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
