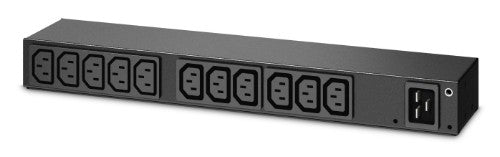

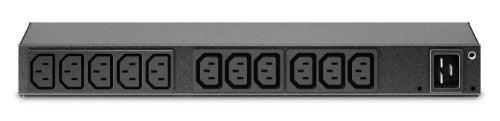

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
Part number
AP6020A
$139.18 CAD
NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Type | Single-phase |
| Product colour | Black |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| Power plug | C20 coupler |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Features | |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Power | |
| Nominal input voltage | 100-240 V |
| Maximum power | 3680 W |
| Maximum current | 20 A |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.73 x 3.66 x 15.3" (44 x 93 x 388 mm) |
| Weight | 3.31 lbs (1.5 kg) |
| Width | 1.73" (44 mm) |
| Depth | 3.66" (93 mm) |
| Height | 15.3" (388 mm) |
| Package width | 8.27" (210 mm) |
| Package depth | 2.99" (76 mm) |
| Package height | 17.2" (436 mm) |
| Package weight | 4.45 lbs (2.02 kg) |
| Package dimensions (WxDxH) | 8.27 x 2.99 x 17.2" (210 x 76 x 436 mm) |
| Packaging data | |
| Package width | 8.27" (210 mm) |
| Package depth | 2.99" (76 mm) |
| Package height | 17.2" (436 mm) |
| Package weight | 4.45 lbs (2.02 kg) |
| Package dimensions (WxDxH) | 8.27 x 2.99 x 17.2" (210 x 76 x 436 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 38.04 |
| Compliance certificates | RoHS |
