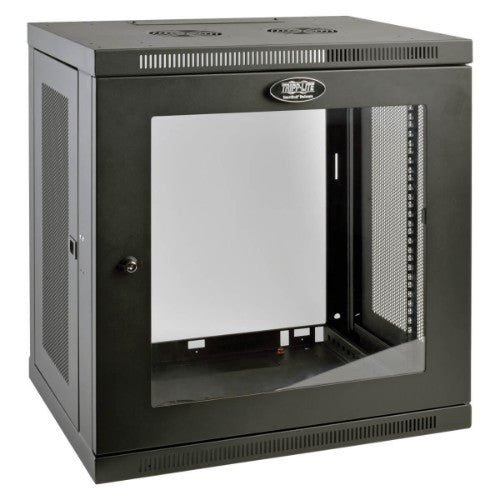

Tripp Lite SRW12UG rack cabinet 12U Wall mounted rack Black
550.70 CAD
Skip to product information
Out of stock
Tripp Lite SRW12UG rack cabinet 12U Wall mounted rack Black
Part number
SRW12UG
Sale price
550.70 CAD
Regular price
747.18 CAD
Taxes and shipping calculated at checkout.
Save
196.48 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
20.41 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 200 lbs (90.7 kgs)
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 12U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)

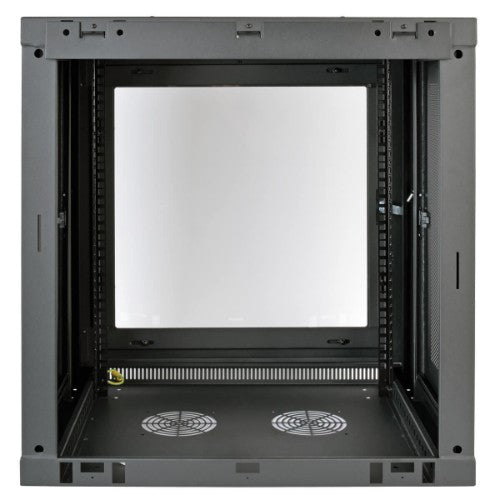

The SRW12UG SmartRack® 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

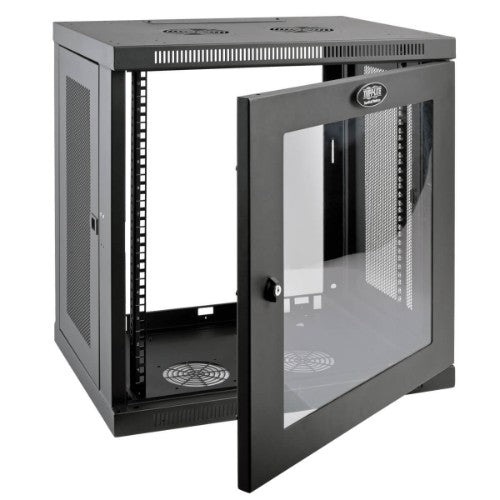

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

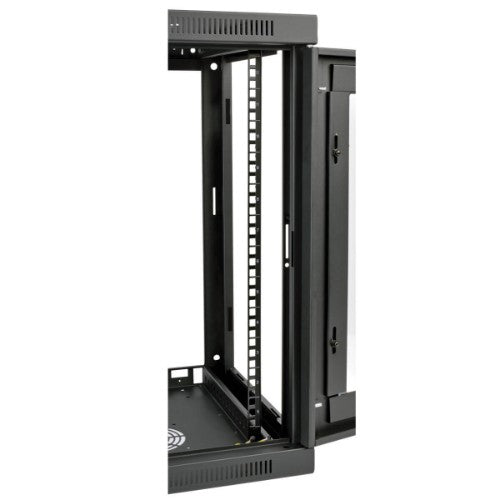

The SRW12UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
| Features | |
|---|---|
| Size (imperial) | 19" |
| Type | Wall mounted rack |
| Rack capacity | 12U |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Key lock | Yes |
| Frame type | Closed |
| Product colour | Black |
| Material | Steel |
| Certification | UL/CSA 60950-1, EIA-310-E RoHS |
| Weight & dimensions | |
| Package width | 26.4" (670.1 mm) |
| Package depth | 27.9" (709.9 mm) |
| Package height | 20.7" (525 mm) |
| Package weight | 45 lbs (20.4 kg) |
| Width | 23.6" (600.2 mm) |
| Depth | 17.7" (449.3 mm) |
| Height | 25.1" (637 mm) |
| Weight | 45 lbs (20.4 kg) |
| Size (imperial) | 19" |

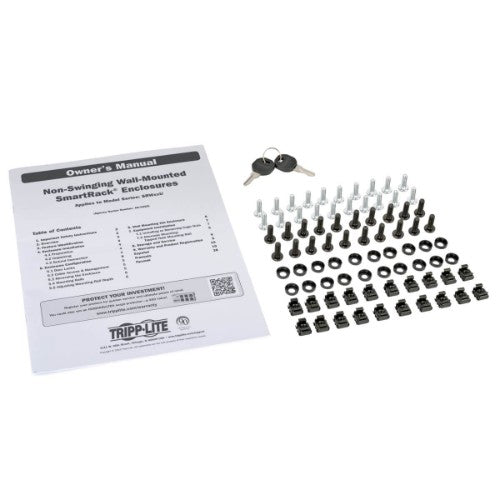

| Packaging content | |
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Manual | Yes |
| Packaging data | |
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 26.4" (670.1 mm) |
| Package depth | 27.9" (709.9 mm) |
| Package height | 20.7" (525 mm) |
| Package weight | 45 lbs (20.4 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Logistics data | |
| Master (outer) case width | 26.4" (670.1 mm) |
| Master (outer) case length | 27.9" (709.9 mm) |
| Master (outer) case height | 20.7" (525 mm) |
| Master (outer) case gross weight | 45 lbs (20.4 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
