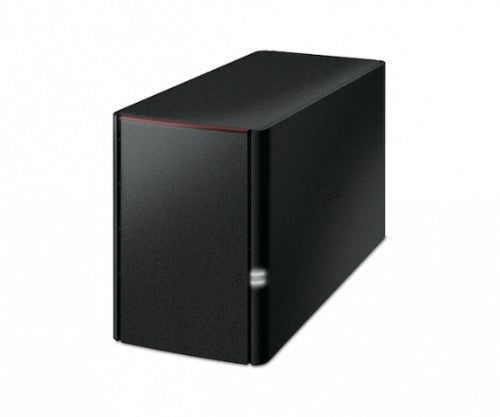

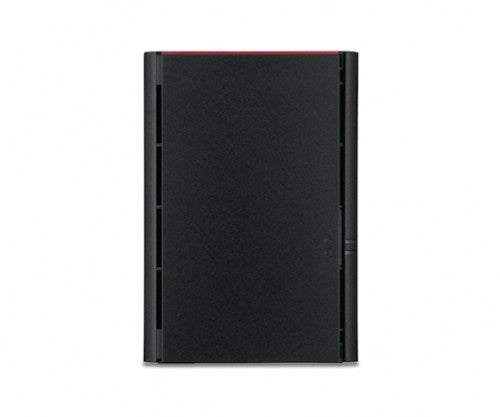

Buffalo™ Technology’s LinkStation™ (LS220D series) combines an incredibly easy User Interface with the convenience, security and capacity of dual-bay, RAID-ready Network Attached Storage.
The LS220D is affordable, fast, and primed for intensive data storage tasks. It’s pre-configured and can even be set up via Smartphones with a new mobileoptimised and intuitive interface.
Buffalo™ Technology’s LS220 series is a two bay Network Attached Storage device available as a diskless enclosure, or fully populated with 2, 4, 6, or 8TB capacity.
Sorry NSA – The Truly Private Cloud
Buffalo’s Private Cloud solution ensures your privacy and comes without any monthly fees. With a private cloud users’ data stays protected in the physical location of your device – not off-site in a third party’s data centre. And with Buffalo’s free mobile and tablet Apps, or any web browser, your data is accessible and just a couple keystrokes away.
- Big capacity
- No size limitation for each file
- No transfer size limitation per day
WebAccess - Free Apps and One-click Access from Anywhere
While on the go, Buffalo's free WebAccess service allows users to create a private cloud for easy remote access and file sharing with anyone, anywhere over the Internet. All you need is a Smartphone or tablet and Buffalo's free iOS, Windows or Android app to enjoy full access to the digital assets you keep on your LinkStation™ 220.
A brand new UI has been designed to provide users one-click access to their most commonly accessed settings.
Easily open Linkstation™ files from a remote site or with free WebAccess Apps available for:
- iOS 4.3 and higher
- Android 2.3 and higher
- Windows Mobile 7.5 , 7.8, 8
- Windows Tablet and Desktop/Laptop with Windows 8
Organize Your Life

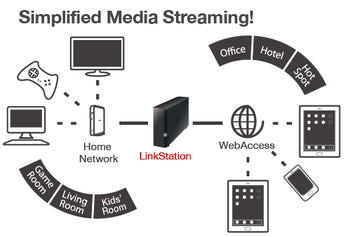

Ideal for home users, the new LinkStation 220 Series provides simple network storage and backup and offers an assortment of features, allowing users to store, organize, access and stream media files from any computer, smartphone or tablet.
Buffalo’s new LinkStation™ can also stream up to 4 HD films simultaneously allowing each family member to watch their favourite film, on their own device, at the same time. The LS220 is DLNA and Twonky Beam-ready and can also stream high-end DSD audio files without losing quality.
Back up
Provides simple and secure shared storage and backup for all PC and Mac computers and mobile devices on a home network. Allows users to backup content on up to five home or office Windows PCs by using Award-winning NovaBACKUP®, or back up Mac computers with Time Machine®: ready for multi-client backups
Buffalo LinkStation 220 NAS Marvell Armada 370 0.25 GB DDR3 8 TB HDD Black
Part number
LS220D0802
$493.67 CAD
8TB, Marvell ARMADA 370 ARM 800MHz, 256MB DDR3, Gigabit LAN, TCP/IP, DLNA, USB 2.0
Description
Room to Spare and Access from AnywhereBuffalo™ Technology’s LinkStation™ (LS220D series) combines an incredibly easy User Interface with the convenience, security and capacity of dual-bay, RAID-ready Network Attached Storage.
The LS220D is affordable, fast, and primed for intensive data storage tasks. It’s pre-configured and can even be set up via Smartphones with a new mobileoptimised and intuitive interface.
Buffalo™ Technology’s LS220 series is a two bay Network Attached Storage device available as a diskless enclosure, or fully populated with 2, 4, 6, or 8TB capacity.
Sorry NSA – The Truly Private Cloud
Buffalo’s Private Cloud solution ensures your privacy and comes without any monthly fees. With a private cloud users’ data stays protected in the physical location of your device – not off-site in a third party’s data centre. And with Buffalo’s free mobile and tablet Apps, or any web browser, your data is accessible and just a couple keystrokes away.
- Big capacity
- No size limitation for each file
- No transfer size limitation per day
WebAccess - Free Apps and One-click Access from Anywhere
While on the go, Buffalo's free WebAccess service allows users to create a private cloud for easy remote access and file sharing with anyone, anywhere over the Internet. All you need is a Smartphone or tablet and Buffalo's free iOS, Windows or Android app to enjoy full access to the digital assets you keep on your LinkStation™ 220.
A brand new UI has been designed to provide users one-click access to their most commonly accessed settings.
Easily open Linkstation™ files from a remote site or with free WebAccess Apps available for:
- iOS 4.3 and higher
- Android 2.3 and higher
- Windows Mobile 7.5 , 7.8, 8
- Windows Tablet and Desktop/Laptop with Windows 8
Organize Your Life
Ideal for home users, the new LinkStation 220 Series provides simple network storage and backup and offers an assortment of features, allowing users to store, organize, access and stream media files from any computer, smartphone or tablet.
Buffalo’s new LinkStation™ can also stream up to 4 HD films simultaneously allowing each family member to watch their favourite film, on their own device, at the same time. The LS220 is DLNA and Twonky Beam-ready and can also stream high-end DSD audio files without losing quality.
Back up
Provides simple and secure shared storage and backup for all PC and Mac computers and mobile devices on a home network. Allows users to backup content on up to five home or office Windows PCs by using Award-winning NovaBACKUP®, or back up Mac computers with Time Machine®: ready for multi-client backups
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 8 TB |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 2 |
| Supported storage drive types | HDD |
| Number of storage drives supported | 2 |
| Maximum supported storage capacity | 8 TB |
| Storage drive interface | Serial ATA II |
| Storage drive capacity | 4 TB |
| Storage drive size | 2.5/3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, JBOD |
| Hot-swap drive bays | No |
| Processor | |
| Processor family | Marvell |
| Processor model | Armada 370 |
| Processor frequency | 0.8 GHz |
| L2 cache | 0.256 MB |
| Memory | |
| Internal memory type | DDR3 |
| Internal memory | 0.25 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, SMB/CIFS, FTP, HTTP/HTTPS, AFP |

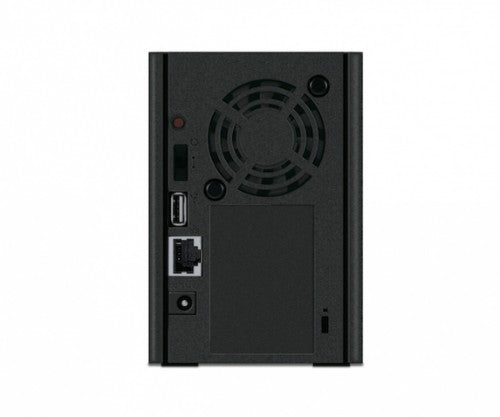

| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Fiber ports quantity | 0 |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Performance | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud |
| Built-in optical drive | No |
| Card reader integrated | No |
| Reset button | Yes |
| Powerful backup NovaBACKUP Professional | Yes |
| Management protocols | HTTP/HTTPS |
| Built-in BitTorrent client | Yes |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Software | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Power | |
| Power supply location | External |
| Number of power supply units | 1 |
| Power consumption (typical) | 19 W |
| Power consumption (sleep) | 0.9 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 3.43" (87 mm) |
| Depth | 8.07" (205 mm) |
| Height | 4.96" (126 mm) |
| Weight | 3.75 lbs (1.7 kg) |
| Packaging content | |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Power consumption (standby) | 13 W |
| Digital Living Network Alliance (DLNA) certified | Yes |
