Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Marketing Features
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

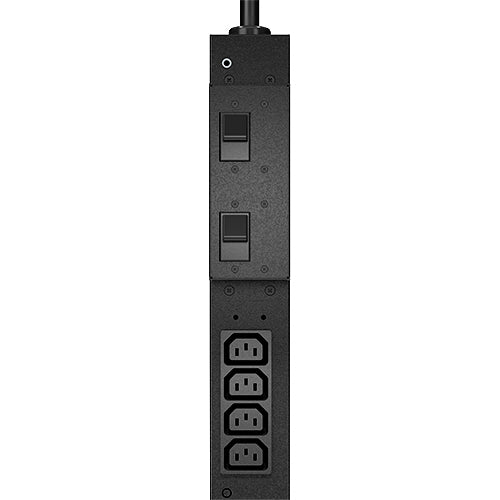

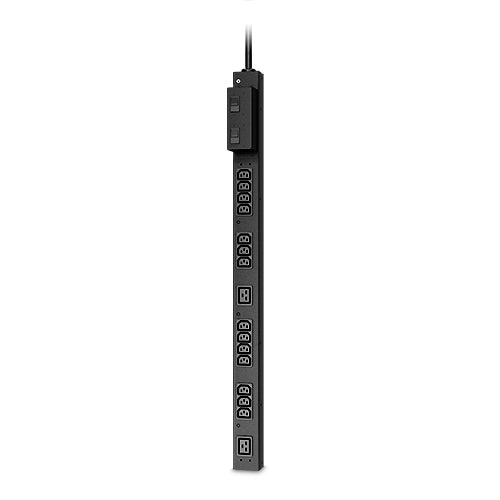

APC AP6002A power distribution unit (PDU) 16 AC outlet(s) Black
Part number
AP6002A
$391.31 CAD
Basic, Half Height, 200-208V, 30A, 14x IEC 320 C13, 2x IEC 320 C19, NEMA L6-30P, 56 x 47 x 833 mm, 2780 g
Description
AgilityWide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Marketing Features
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Product colour | Black |
| Certification | cUL, UL |
| Ports & interfaces | |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | NEMA L6-30P |
| Features | |
| Certification | cUL, UL |
| Power | |
| Nominal input voltage | 208 V |
| Maximum current | 30 A |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 30 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 1.85 x 32.8" (56 x 47 x 833 mm) |
| Weight | 6.13 lbs (2.78 kg) |
| Width | 2.2" (56 mm) |
| Depth | 1.85" (47 mm) |
| Height | 32.8" (833 mm) |
| Package width | 6.14" (156 mm) |
| Package depth | 5.39" (137 mm) |
| Package height | 38" (966 mm) |
| Package weight | 7.14 lbs (3.24 kg) |
| Package dimensions (WxDxH) | 6.14 x 5.39 x 38" (156 x 137 x 966 mm) |
| Packaging data | |
| Package width | 6.14" (156 mm) |
| Package depth | 5.39" (137 mm) |
| Package height | 38" (966 mm) |
| Package weight | 7.14 lbs (3.24 kg) |
| Package dimensions (WxDxH) | 6.14 x 5.39 x 38" (156 x 137 x 966 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
