In stock
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

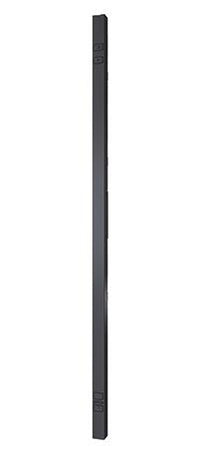

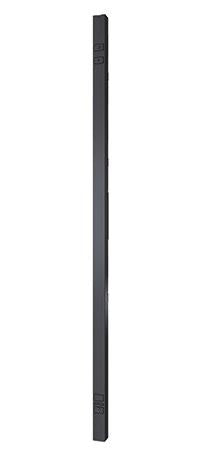

APC Rack PDU 2G power distribution unit (PDU) 24 AC outlet(s) Black
Part number
AP8930
$1,632.02 CAD
120V, 50/60Hz, 1920VA, 20A, 55x46x1791mm, 8.6kg, Black
Description
Rack PDU 2G, Switched, ZeroU, 20A, 100-120V, (24) 5-20RAPC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Specifications
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Input connection type | NEMA L5-20P |
| Features | |
| Cable length | 118.1" (3 m) |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 20 A |
| Output voltage | 120 V |
| Load capacity | 1920 VA |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.17 x 1.81 x 70.5" (55 x 46 x 1791 mm) |
| Weight | 14.4 lbs (6.52 kg) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Height | 70.5" (1791 mm) |
| Package width | 6.46" (164 mm) |
| Package depth | 4.25" (108 mm) |
| Package height | 79" (2006 mm) |
| Package weight | 19 lbs (8.6 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.25 x 79" (164 x 108 x 2006 mm) |
| Packaging data | |
| Package width | 6.46" (164 mm) |
| Package depth | 4.25" (108 mm) |
| Package height | 79" (2006 mm) |
| Package weight | 19 lbs (8.6 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.25 x 79" (164 x 108 x 2006 mm) |
| Packaging content | |
| Packaging content | Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
