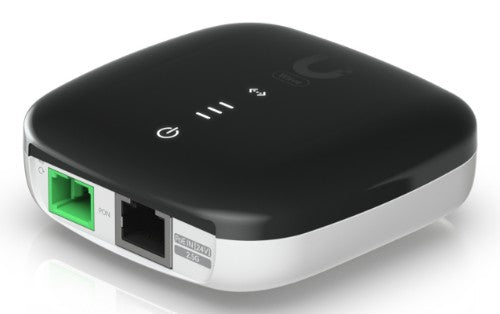

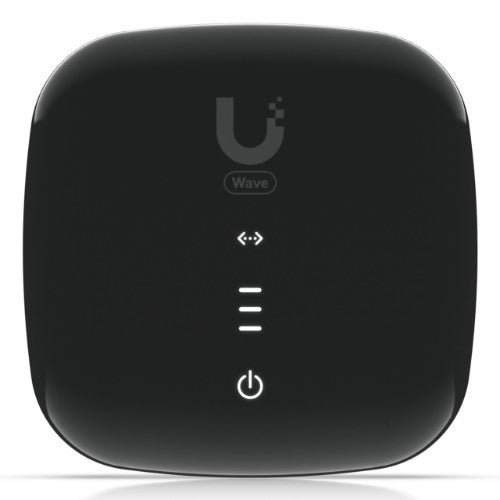

Ubiquiti WaveFiber ONU network media converter 2488 Mbit/s 1490 nm Black, White
265.10 CAD
Skip to product information
Out of stock
Ubiquiti WaveFiber ONU network media converter 2488 Mbit/s 1490 nm Black, White
Part number
Wave-Fiber-ONU-5
265.10 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.078 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
| Network | |
|---|---|
| Maximum data transfer rate | 2488 Mbit/s |
| VLAN support | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Fiber optic connector | SC/APC |
| Performance | |
| Wavelength | 1490 nm |
| Maximum transfer distance | 787401.6" (20000 m) |
| Tx power (min) | 1.5 dBmW |
| Tx power (max) | 5 dBmW |
| Rx power (min) | -8 dBmW |
| Rx power (max) | -28 dBmW |
| Features | |
| Internal | No |
| Reset button | Yes |
| LED indicators | LAN, Power, Status |
| Housing material | Polycarbonate (PC) |
| Product colour | Black, White |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC/APC |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power | |
| Power consumption (max) | 5 W |
| Input voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 3.01" (76.5 mm) |
| Depth | 3.01" (76.5 mm) |
| Height | 1.04" (26.4 mm) |
| Weight | 2.75 oz (78 g) |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Design | |
| Internal | No |
| LED indicators | LAN, Power, Status |
| Housing material | Polycarbonate (PC) |
| Product colour | Black, White |
| Management features | |
| Reset button | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Logistics data | |
| Quantity per pack | 5 pc(s) |
