TP-Link TL-SM311LM network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 850 nm
27.61 CAD
Skip to product information
In stock
TP-Link TL-SM311LM network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 850 nm
Part number
SM311LM
27.61 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.11 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Multi-mode MiniGBIC module
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
What This Product Does

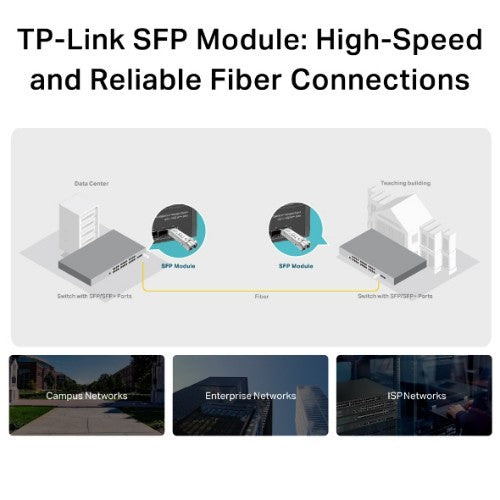

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | mini-GBIC/SFP |
| Maximum data transfer rate | 1250 Mbit/s |

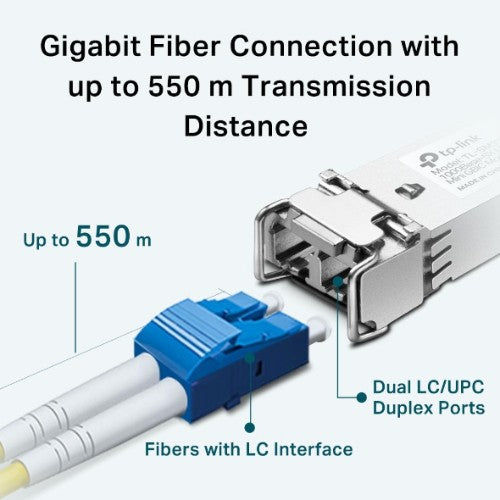

| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 21653.5" (550 m) |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Product colour | Metallic |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Operational conditions | |

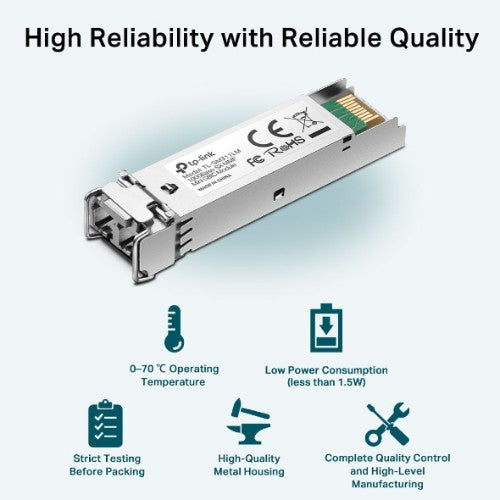

| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | mini-GBIC/SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Weight & dimensions | |
| Width | 2.18" (55.4 mm) |
| Depth | 0.539" (13.7 mm) |
| Height | 0.508" (12.9 mm) |
| Package width | 1.5" (38 mm) |
| Package depth | 8.15" (207 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 3.88 oz (110 g) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Packaging data | |
| User guide | Yes |
| Package width | 1.5" (38 mm) |
| Package depth | 8.15" (207 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 3.88 oz (110 g) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
