ATEN CE370 console extender
544.25 CAD
Skip to product information
Out of stock
ATEN CE370 console extender
Part number
CE370
544.25 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.846 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Features

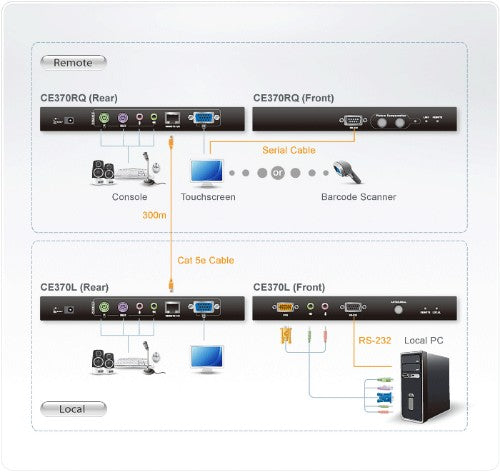

- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
- Manually tune the R/G/B settings, store and retrieve
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
- Superior Audio - no loss in audio quality at 300 m
- Supports Wide Screen formats
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- Hot pluggable
- Rack mountable
- Easy to install - no software required - connecting cables to the devices is all it takes
Package Contents
- 1x CE370L PS/2 KVM Extender (Local Unit)
- 1x CE370RQ PS/2 KVM Extender (Remote Unit)
- 1x 2L-5302P PS/2 KVM Cable Set (1.8 m)
- 2x 0AD6-1605-24EG Power Adapters
- 1x Mounting Kit
- 1x User Instructions
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
- Manually tune the R/G/B settings, store and retrieve
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
- Superior Audio - no loss in audio quality at 300 m
- Supports Wide Screen formats
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- Hot pluggable
- Rack mountable
- Easy to install - no software required - connecting cables to the devices is all it takes
Package Contents
- 1x CE370L PS/2 KVM Extender (Local Unit)
- 1x CE370RQ PS/2 KVM Extender (Remote Unit)
- 1x 2L-5302P PS/2 KVM Cable Set (1.8 m)
- 2x 0AD6-1605-24EG Power Adapters
- 1x Mounting Kit
- 1x User Instructions
| Technical details | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| RS-232 ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Manual | No |
| Cables included | PS/2 |
