Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

Operate multiple secure systems from a single workstation with the NIAP certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to four computers with a 4K 60Hz display.

NIAP Certified Multi-System Control

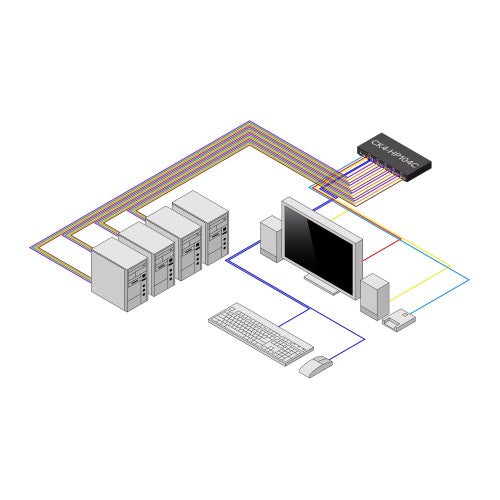

Manage up to four HDMI or DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and a 4K 60Hz monitor. Status LEDs on the console ports, CAC port, and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

This secure KVM complies with the following protection profiles and modules:

• Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
• PP-Module for Analog Audio Output Devices, Version 1.0
• PP-Module for User Authentication Devices, Version 1.0
• PP-Module for Keyboard/Mouse Devices, Version 1.0
• PP-Module for Video/Display Devices, Version 1.0

Built-In CAC Access and Tamper Protection

A dedicated and configurable Common Access Card port enables secure smart card logins across all connected systems without the need to attach readers to each machine. The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

Enterprise-Grade Security and Reliability

Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.

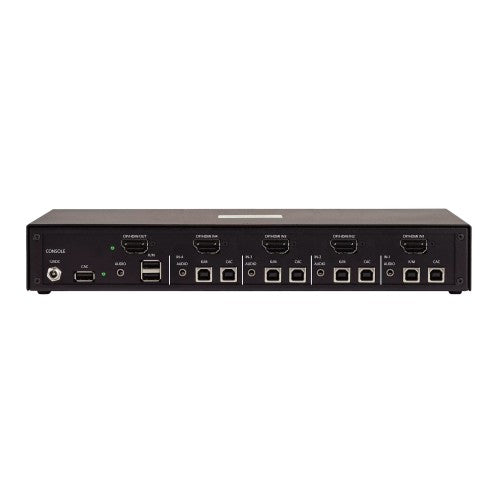

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Number of microphone inputs	4
Mouse port type	USB
Video port type	HDMI/DisplayPort
Audio connections	Yes
DisplayPorts quantity	4
Headphone outputs	1
HDMI ports quantity	4
DC-in jack	Yes
Console USB ports quantity	3
Console ports	3.5mm headphone, DisplayPort, HDMI, USB A
USB 2.0 Type-B ports quantity	8
Console DisplayPorts ports quantity	1
Console HDMI ports quantity	1
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Daisy chain	No
Audio channels	2.0
Number of displays supported	1
Maximum refresh rate	60 Hz
Maximum cable length	236.2" (6 m)
Design
Product colour	Black
Rack mounting	No
Push button	Yes
Maximum cable length	236.2" (6 m)
LED indicators	Yes
Hot keys	No
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Power source	DC
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	6.69" (170 mm)
Depth	12.6" (320 mm)
Height	1.73" (44 mm)
Weight	4.19 lbs (1.9 kg)
Package width	3.5" (89 mm)
Package depth	0.638" (16.2 mm)
Package height	8.5" (216 mm)
Packaging data
Package width	3.5" (89 mm)
Package depth	0.638" (16.2 mm)
Package height	8.5" (216 mm)
Other features
IP control	No
Push button	Yes
Hot keys	No
Logistics data
Master (outer) case width	10.1" (257 mm)
Master (outer) case length	21.7" (551 mm)
Master (outer) case height	17.2" (436 mm)
Products per master (outer) case	6 pc(s)
