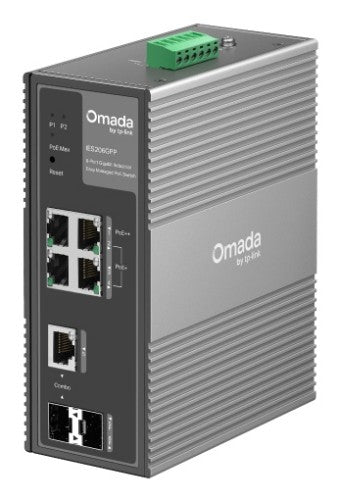

TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
239.58 CAD
Skip to product information
4 left
TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
IES206GPP
239.58 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.361 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

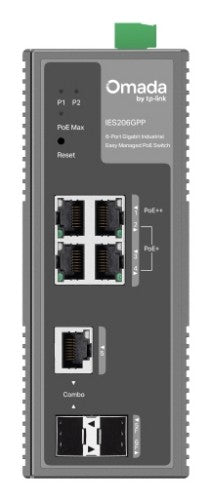

- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port

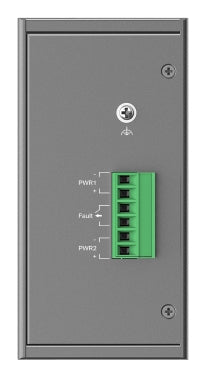

- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Industrial-Grade Protection Built for Harsh Environments
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Combo SFP ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames | 15000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 8.93 Mpps |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| DIN rail mounting | Yes |
| Wall mountable | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 57 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.72" (120 mm) |
| Height | 2.36" (60 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Packaging data | |
| Quick start guide | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
