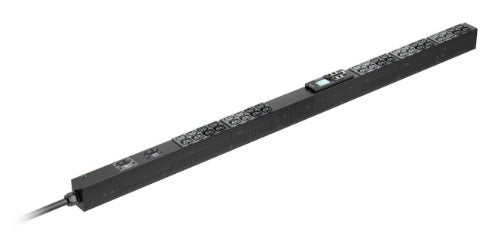

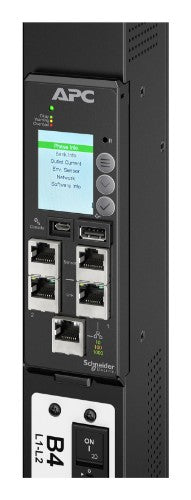

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is NEMA L6-30P and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.

Design
PDU types	Metered
Type	Single-phase
Product colour	Black
Certification	RoHS
Rack capacity	0U
Ports & interfaces
AC outlets quantity	40 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
USB ports quantity	1
Ethernet LAN (RJ-45) ports	5
Features
Certification	RoHS
Management features
Management platform	NMC3
Power
Nominal input voltage	208 V
Maximum current	30 A
Nominal output voltage	208 V
Load capacity	4992 VA
AC input frequency	50/60 Hz
Number of phases	1
Certificates
Certification	RoHS
Weight & dimensions
Weight	17.2 lbs (7.8 kg)
Width	2.2" (56 mm)
Depth	2.95" (75 mm)
Height	58.7" (1490 mm)
Package width	4.57" (116 mm)
Package depth	8.19" (208 mm)
Package height	67.7" (1720 mm)
Package weight	21.6 lbs (9.8 kg)
Packaging data
Package width	4.57" (116 mm)
Package depth	8.19" (208 mm)
Package height	67.7" (1720 mm)
Package weight	21.6 lbs (9.8 kg)
