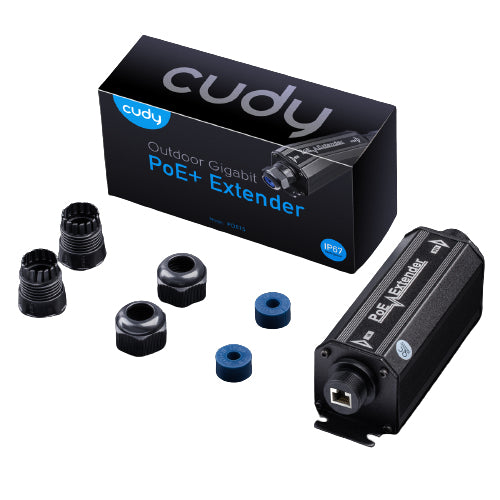

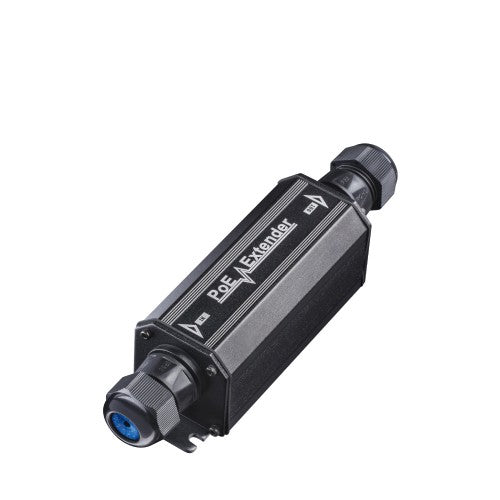

Cudy POE15 PoE adapter Gigabit Ethernet
97.49 CAD
Skip to product information
In stock
Cudy POE15 PoE adapter Gigabit Ethernet
Part number
POE15
97.49 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.308 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Compatible with IEEE802.3af and IEEE802.3at
- Extends the range of PoE and Ethernet an additional 100 meters
- No additional power supply is required
- Automatically detects and protects PoE equipments from being
- damaged by incorrect installation
- Full-rate network throughout the whole extended distance
- Compact size, Wall-Mountable design
- Easy plug-and-play installation
- EMI standards complies with FCC, CE class B
Gigabit Ports
Gigabit Speed. The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.

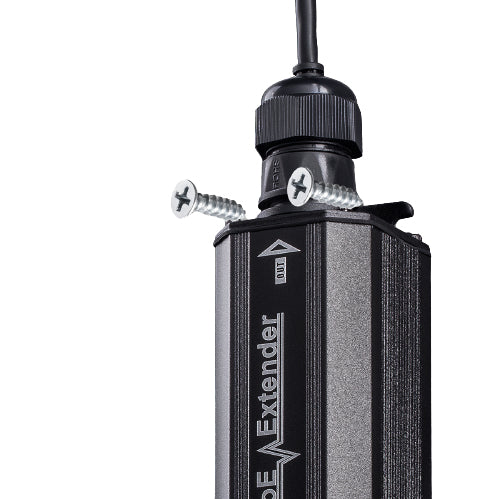

Wall Mount
The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage.
Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and Polarity Input: 1/2 (-), 3/6 (+), 4/5(+), 7/8(-), Output: 1/2 (-), 3/6 (+).
Gigabit Speed. The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.
Wall Mount
The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage.
Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and Polarity Input: 1/2 (-), 3/6 (+), 4/5(+), 7/8(-), Output: 1/2 (-), 3/6 (+).
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Duplex system | Full, Half |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Features | |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 3937" (100 m) |
| Product colour | Black |
| Pin assignment & polarity | 1/2 (-). 3/6 (+). 7/8 (-). 4/5 (+) |
| LED indicators | Activity, Link, PoE |
| International Protection (IP) code | IP67 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power | 25 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 7.28" (185 mm) |
| Depth | 1.77" (45 mm) |
| Height | 1.77" (45 mm) |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Package type | Box |
