Ubiquiti UniFi Pro XG 10 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Gray
Part number
USW-PRO-XG-10-POE
$972.68 CAD
400W, 10 x 10GbE RJ45 (10G/5G/2.5G/1G/100M), 2 x 10G SFP+, 240 Gbps, 1.3" touchscreen, SGCC steel, 442.4 x 285 x 44 mm
Description
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.Specifications
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | AC/DC |
| 10G Ethernet (copper) ports quantity | 10 |
| Network | |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Forwarding rate | 179 Mpps |
| Throughput | 120 Gbit/s |
| Number of VLANs | 1000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Gray |
| Reset button | Yes |
| Form factor | 1U |
| Display type | LCM |
| Backlight display | Yes |
| LED indicators | System |
| Housing material | SGCC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 520 W |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 11.2" (285 mm) |
| Height | 1.73" (44 mm) |
| Weight | 10.1 lbs (4.6 kg) |

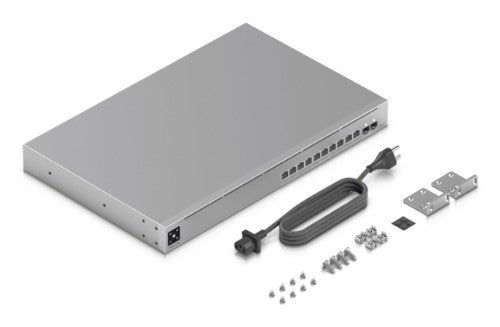

| Packaging content | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 2 MB |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging data | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
