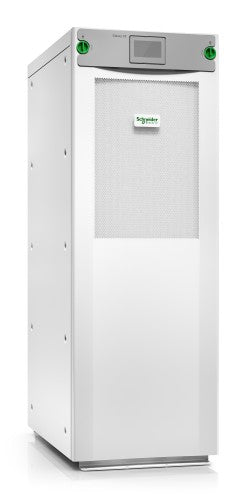

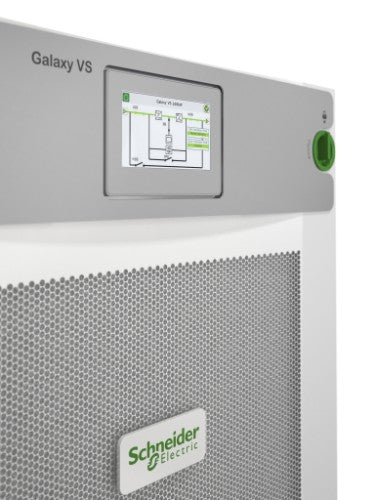

APC GVSUPS20K0B4HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
21,776.60 CAD
Skip to product information
Out of stock
APC GVSUPS20K0B4HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Part number
GVSUPS20K0B4HS
21,776.60 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
200.0 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Internal backfeed protection
Increases system defense from power anomalies.
Energy storage flexibility
Conventional flooded and modular battery offer along with different charging modes allows tailoring to specific back-up requirements.
Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.
Total cost of Ownership
Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Serviceability
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Multiple levels of service
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.

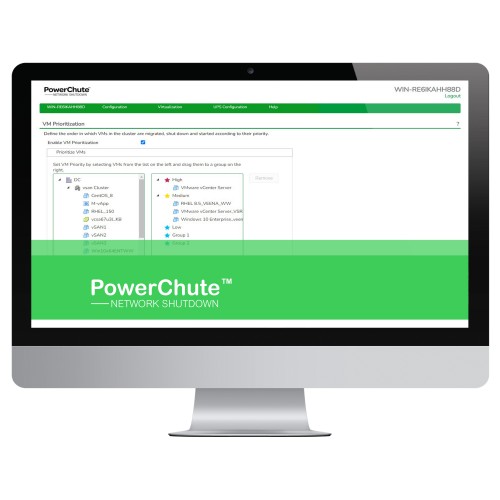

StruxureOn enabled
Simplify maintenance and operation of your equipment through the use of vendor-neutral, cloud-based software and services.
5x8 Start-up service included
Required for full coverage of factory warranty
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Internal backfeed protection
Increases system defense from power anomalies.
Energy storage flexibility
Conventional flooded and modular battery offer along with different charging modes allows tailoring to specific back-up requirements.
Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.
Total cost of Ownership
Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Serviceability
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Multiple levels of service
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
StruxureOn enabled
Simplify maintenance and operation of your equipment through the use of vendor-neutral, cloud-based software and services.
5x8 Start-up service included
Required for full coverage of factory warranty
| Power | |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 384 V |
| Input operation voltage (max) | 480 V |
| Output operation voltage (min) | 340 V |
| Output operation voltage (max) | 460 V |
| Maximum current | 54 A |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output frequency | 50/60 Hz |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Waveform | Sine |
| Power protection features | Overload, Short circuit |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output power | 20000 W |
| Input operation voltage (min) | 384 V |
| Input operation voltage (max) | 480 V |
| Output operation voltage (min) | 340 V |
| Output operation voltage (max) | 460 V |
| Maximum current | 54 A |
| Waveform | Sine |
| Power protection features | Overload, Short circuit |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output frequency | 50/60 Hz |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Compatibility | Schneider Electric's lithium ion battery solution |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Design | |
| Form factor | Tower |
| Compatibility | Schneider Electric's lithium ion battery solution |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 39600" (0 - 1005.8 m) |
| Non-operating altitude | 0 - 120000" (0 - 3048 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 20.5" (521 mm) |
| Depth | 33.3" (847 mm) |
| Height | 58.5" (1485 mm) |
| Weight | 440.9 lbs (200 kg) |
| Package width | 25.2" (640 mm) |
| Package depth | 39" (990 mm) |
| Package height | 66.1" (1680 mm) |
| Package weight | 440.9 lbs (200 kg) |
| Packaging data | |
| Package width | 25.2" (640 mm) |
| Package depth | 39" (990 mm) |
| Package height | 66.1" (1680 mm) |
| Package weight | 440.9 lbs (200 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
