One Shot, Huge Vision

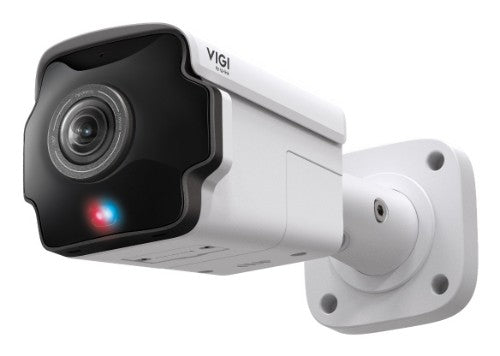

8MP Outdoor IR Panoramic Bullet Network Camera

Cut Project Costs with 180° View and 4K (8MP) Clarity
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

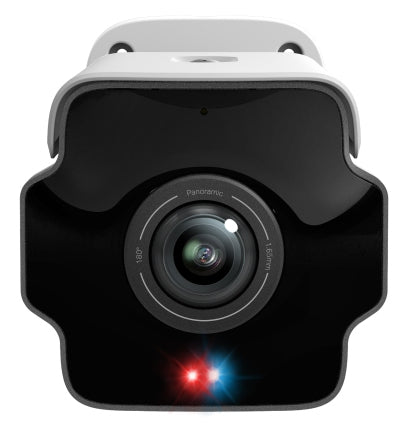

Red-Blue Warning Lights with
Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration

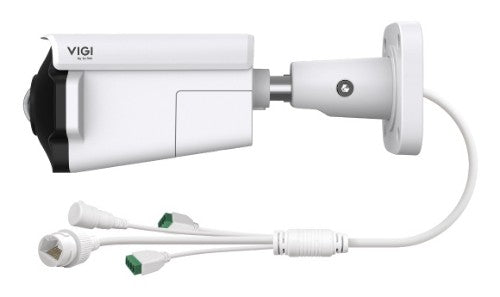

The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.*2

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Maximum operating distance	1732.3" (44 m)
Dynamic range	120 dB
Design
Form factor	Bullet
Weatherproof	Yes
Product colour	White
Mounting type	Wall
Protection features	Waterproof
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 90°
Camera shutter speed	1/3 to 1/10000
Lens viewing angle, horizontal	180°
Lens viewing angle, vertical	86°
Lens viewing angle, diagonal	180°
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.7"
Panoramic camera
Sensor type (panoramic camera)	CMOS
Lens system
Maximum aperture number	2
Detect distance	1732.3" (44 m)
Observe distance	721.7" (18.3 m)
Recognize distance	346.5" (8.8 m)
Identify distance	173.2" (4.4 m)
Fixed focus	Yes
Fixed focal length	0.0650" (1.65 mm)
Night vision
Night vision	Yes
LED type	IR/White
Video
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Maximum resolution	3840 x 2160 pixels
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
Back Light Compensation (BLC)	Yes
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 3840 x 2160
Video compression formats	H.264, H.264+, H.265, H.265+
Total megapixels	8 MP
Video recording	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Sample rate	8 kHz
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	G.711 A-law
Bit rate range	0 - 64 Kbit/s
Number of microphones	1
Network
Bluetooth	No
Networking standards	IEEE 802.3at
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
SIM card slot	Yes
Live view	Yes
SIM card type	MicroSIM
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Alert notification type	Push notification
Motion sensor	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Detection distance	4724.4" (120 m)
Password protection	Yes
Mirror	Yes
Built-in siren	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Management features
Web browser	Yes
Web-based management	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (Power over Ethernet (PoE))	21 W
Power consumption (max)	18 W
DC-in jack	Yes
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	3.94" (100 mm)
Height	3.98" (101 mm)
Length	10.5" (266 mm)
Weight	2.23 lbs (1.01 kg)
Packaging content
Number of cameras	1
Screws included	Yes
Mounting kit	Yes
Manual	Yes
Drilling template included	Yes
