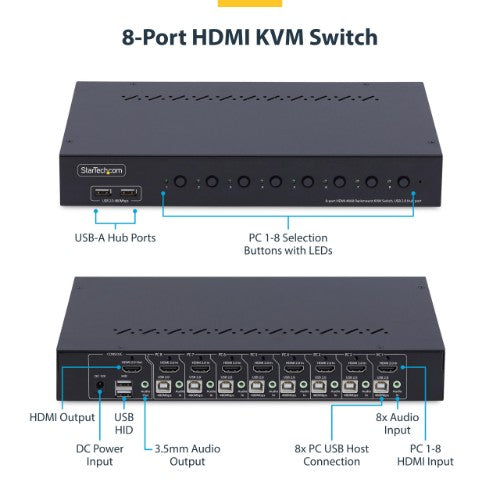

The 4K 60Hz rackmount KVM switch allows switching between eight HDMI-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz HDMI 2.0 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

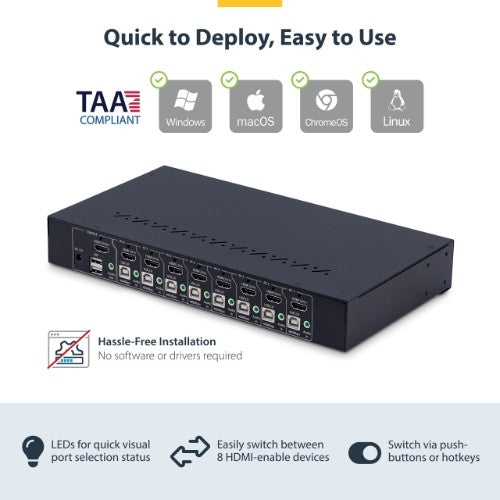

No Drivers or Software
The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.
Multiple Switching Options
Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

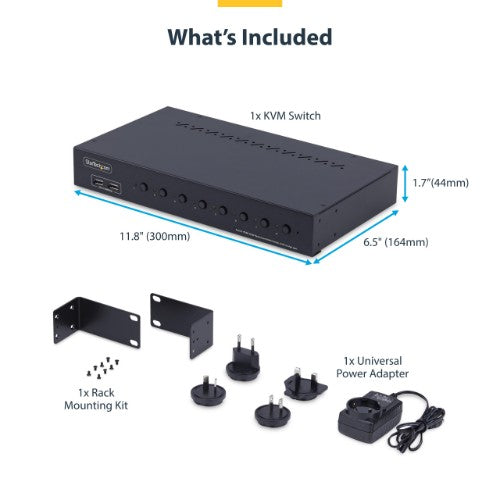

Rack Mount Kit Included
The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.
To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of HDMI, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
StarTech.com R8AH202-KVM-SWITCH KVM switch Rack mounting Black
Part number
R8AH202-KVM-SWITCH
$887.71 CAD
StarTech.com 8-Port HDMI KVM Switch w/1U Rack Mount Kit, 4K 60Hz HDMI 2.0, Push-Button/Hotkey Switching, TAA Compliant
Key Features
- 4K 60HZ KVM SWITCH: Switch between eight HDMI-enabled computers to share a keyboard, mouse, 3.5mm audio, USB 2.0 hub (2x front/2x rear), and a 4K 60Hz HDMI 2.0 monitor for effortless multi-system management & improved workspace efficiency
- NO DRIVERS OR SOFTWARE: TAA-Compliant 8-Port KVM Switch enables BIOS level control and works with any operating system including Windows, macOS, ChromeOS, & Linux; Compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, & Apple Silicon
- MULTIPLE SWITCHING OPTIONS: Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status
- RACK MOUNTABLE: KVM switch includes rackmount brackets in the box for installation in 1U of rack space on network racks and is compatible with ANSI/EIA RS-310-D standard 19-inch server racks that have a mounting depth of 6.5inches (165mm) or more
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Description
Control up to eight USB and HDMI-enabled computers from a single keyboard, mouse, and 4K 60Hz HDMI monitorThe 4K 60Hz rackmount KVM switch allows switching between eight HDMI-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz HDMI 2.0 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.
No Drivers or Software
The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.
Multiple Switching Options
Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.
Rack Mount Kit Included
The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.
To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of HDMI, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Number of microphone inputs | 8 |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI version | 2.0 |
| Headphone outputs | 1 |
| HDMI ports quantity | 8 |
| DC-in jack | Yes |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB 2.0 Type-B ports quantity | 8 |
| Performance | |
| Data transfer rate (max) | 0.48 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 s |
| Daisy chain | No |
| Audio channels | 2.0 |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| Mean time between failures (MTBF) | 73905 h |
| LED indicators | Yes |
| Hot keys | Yes |
| Rack capacity | 1U |
| Housing material | Zinc |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Output voltage | 12 V |
| Input current | 1 A |
| Power source | DC |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 6.46" (164 mm) |
| Depth | 11.8" (300 mm) |
| Height | 1.73" (44 mm) |
| Weight | 3.31 lbs (1.5 kg) |
| Package width | 17.1" (435 mm) |
| Package depth | 11.3" (288 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 5.07 lbs (2.3 kg) |
| Packaging data | |
| Package width | 17.1" (435 mm) |
| Package depth | 11.3" (288 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 5.07 lbs (2.3 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 23" (585 mm) |
| Master (outer) case length | 21.5" (545 mm) |
| Master (outer) case height | 10.6" (270 mm) |
| Products per master (outer) case | 5 pc(s) |
