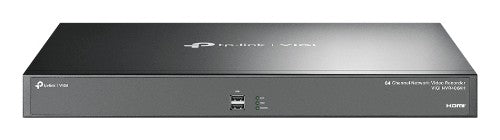

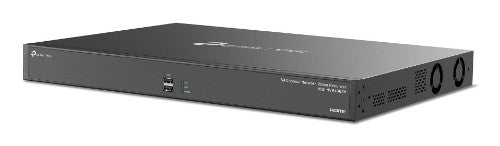

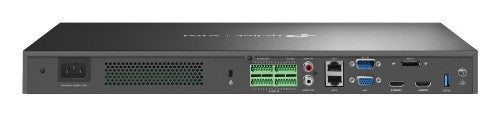

TP-Link VIGI NVR4064H network video recorder Black
635.64 CAD
Skip to product information
3 left
TP-Link VIGI NVR4064H network video recorder Black
Part number
VIGI NVR4064H
635.64 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
5.0 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Security Never Shuts Down
64 Channel Network Video
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
64 Channel Network Video
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
| Performance | |
|---|---|
| Video input channels | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Maximum resolution | 3840 x 2160 pixels |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Recording modes | Manual, Schedule |
| Audio system | 2-way |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Backup function | Yes |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 320 Mbit/s |
| Input bandwidth | 320 Mbit/s |
| Hard drive | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| HDD interface | SATA |
| Storage | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| Storage relative humidity (H-H) | 10 - 90% |
| Features | |
| Reset button | Yes |
| Buzzer off | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 48.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 13" (330 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.82 lbs (4 kg) |
| Package width | 17.3" (440 mm) |
| Package depth | 20.8" (528 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 11 lbs (5 kg) |
